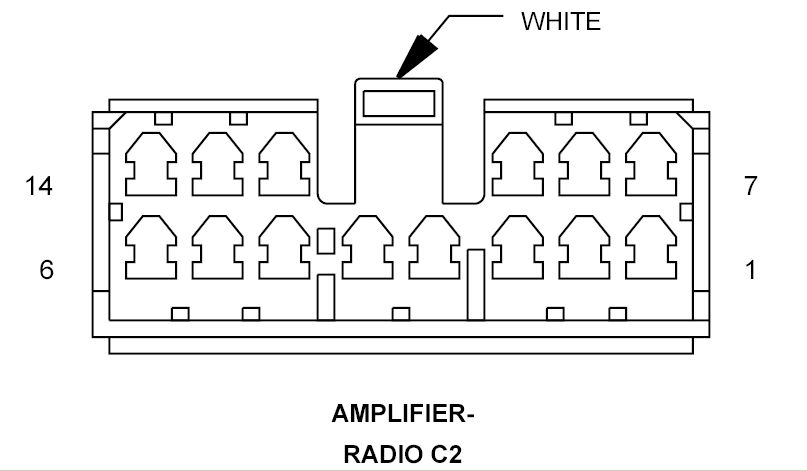

Radio Amplifier Connector End View (C2)
AMPLIFIER-RADIO C2 - WHITE 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X153 18DG/VT | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) |
| 2 | X154 18GY/YL | AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) |
| 3 | X205 18GY/LG | AMPLIFIED LEFT REAR SPEAKER (+) |
| 4 | X206 18DG/LG | AMPLIFIED RIGHT REAR SPEAKER (+) |
| 5 | X214 18DG/DB | AMPLIFIED LIFTGATE SPEAKER 1 (+) |
| 6 | X212 18GY/DB | AMPLIFIED LIFTGATE SPEAKER 2 (+) |
| 7 | X155 18DG/BK | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) |
| 8 | X156 18GY/LB | AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) |
| 9 | X295 18GY/DG | AMPLIFIED LEFT REAR SPEAKER (-) |
| 10 | - | - |
| 11 | - | - |
| 12 | X296 18DG/GY | AMPLIFIED RIGHT REAR SPEAKER (-) (BASE) |
| 12 | X296 18DG/LB | AMPLIFIED RIGHT REAR SPEAKER (-) (EXCEPT BASE) |
| 13 | X284 18DG/TN | AMPLIFIED LIFTGATE SPEAKER 1 (-) |
| 14 | X282 18GY/TN | AMPLIFIED LIFTGATE SPEAKER 2 (-) |
