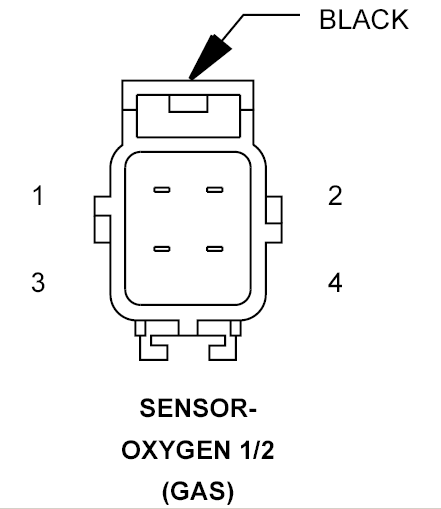

Oxygen Sensor 1/2 (Gas) Connector End View

SENSOR-OXYGEN 1/2 - BLACK 4 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z924 20BK/LB	GROUND
2	K299 20BR/RD	O2 1/2 HEATER CONTROL
3	K904 20DB/DG	O2 1/2 RETURN
4	K141 20DB/YL	O2 1/2 SIGNAL
