Connector End Views
>>
Connector Pin-Outs
>>
Oil Pressure Switch (Diesel) Connector End View
Oil Pressure Switch (Diesel) Connector End View

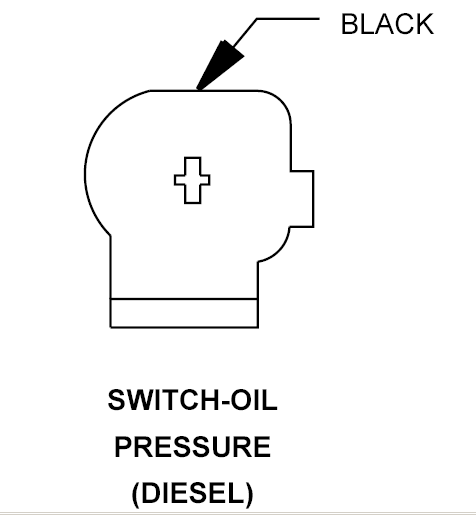

SWITCH-OIL PRESSURE - BLACK 1 WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G6 20VT/GY
EOP SIGNAL
Courtesy of CHRYSLER CORP.
