Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Left Side Repeater Lamp (Export) Connector End View
Left Side Repeater Lamp (Export) Connector End View

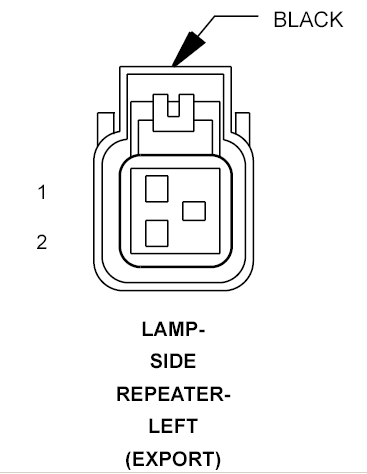

LAMP-SIDE REPEATER-LEFT - BLACK 2 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L161 20WT/LG
LEFT TURN SIGNAL (OUT)
2
Z960 18BK/LB
GROUND
