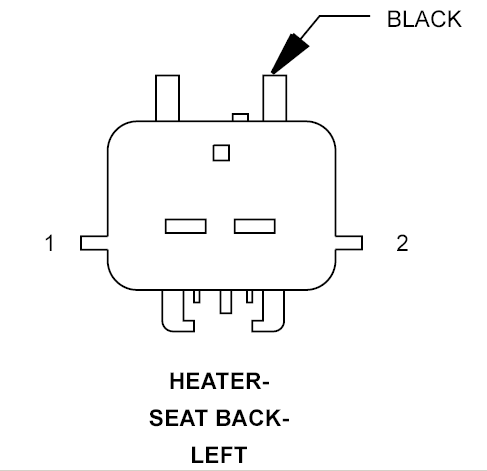

Left Seat Back Heater Connector End View
Left Seat Back Heater Connector End View
HEATER-SEAT BACK-LEFT - BLACK 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
P187 18YL
LEFT SEAT HEATER B(+) DRIVER
2
Z960 18BK
GROUND
Courtesy of CHRYSLER CORP.
