Left Seat Airbag Connector End View

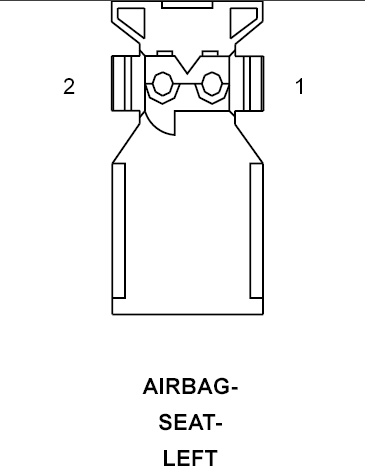

Left Seat Airbag Connector End View
AIRBAG-SEAT-LEFT - 2 WAY FEMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R5 18LB/VT
LEFT SEAT SQUIB 1 LINE 2
2
R7 18LG/GY
LEFT SEAT SQUIB 1 LINE 1
Courtesy of CHRYSLER CORP.
