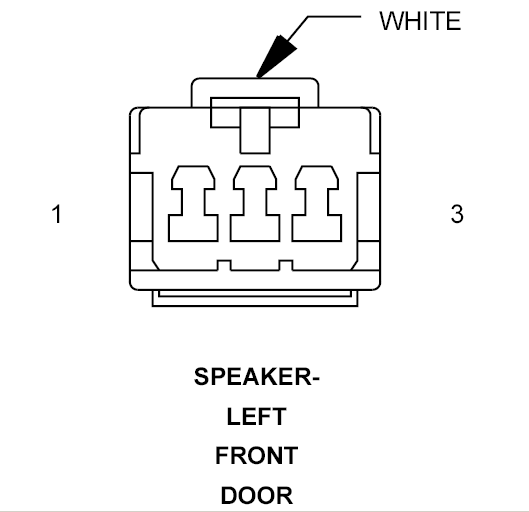

Left Front Door Speaker Connector End View
SPEAKER-LEFT FRONT DOOR - WHITE 3 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X201 18GY/VT |
LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 1 |
X201 18GY/VT |
AMPLIFIED LEFT FRONT DOOR SPEAKER (+) (PREMIUM) |
| 2 |
- |
- |
| 3 |
X291 18GY/YL |
LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 3 |
X291 18GY/YL |
AMPLIFIED LEFT FRONT DOOR SPEAKER (-) (PREMIUM) |
