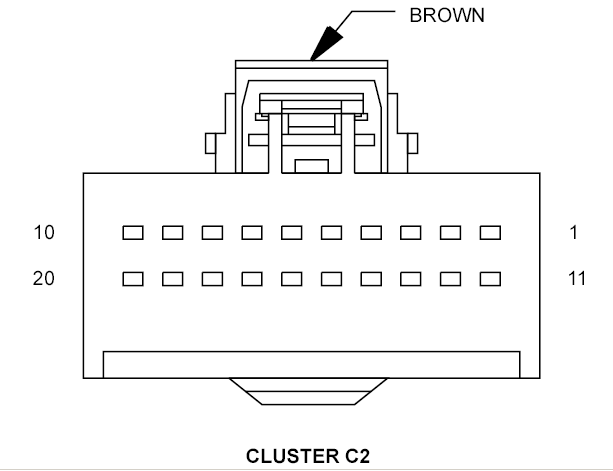

Instrument Cluster Connector End View (C2)
CLUSTER C2 - BROWN 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | M27 20YL/LB | READING/RAIL LAMPS DRIVER |
| 3 | G75 20VT/DB | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 4 | M24 20YL/WT | COURTESY LAMPS DRIVER |
| 5 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 6 | G76 20VT/YL | RIGHT REAR DOOR AJAR SWITCH SENSE |
| 7 | B25 20DG/WT | PARK BRAKE SWITCH SENSE |
| 8 | L53 20DG/WT | STOP LAMP SWITCH OUTPUT |
| 9 | A412 20RD/DB | FUSED B(+) (I.O.D.) |
| 10 | Z937 20BK/YL | GROUND |
| 11 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 12 | R57 20LG/GY | DRIVER SEAT BELT SWITCH SENSE |
| 13 | G78 20VT/OR | LIFTGATE AJAR SWITCH SENSE |
| 14 | G38 20GY/BK | UGDO ENABLE CONTROL CIRCUIT |
| 15 | N5 20DB/BK | FUEL LEVEL SIGNAL 2 |
| 16 | N4 20DB/WT | FUEL LEVEL SIGNAL 1 |
| 17 | - | - |
| 18 | P697 20LG/DG | DOOR LOCK SWITCH MUX |
| 19 | - | - |
| 20 | - | - |
