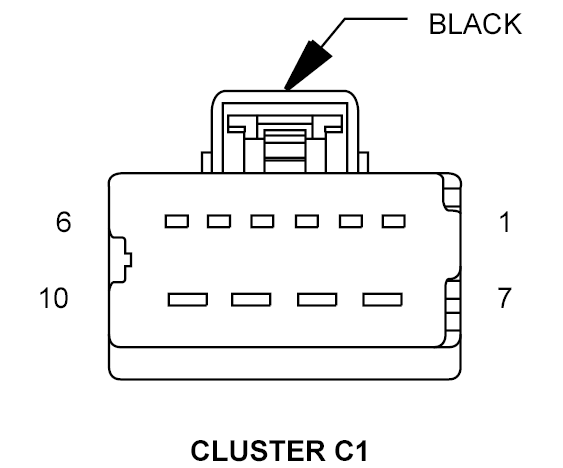

Instrument Cluster Connector End View (C1)
CLUSTER C1 - BLACK 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A932 18RD/BR | FUSED B(+) (I.O.D.) |
| 2 | E12 20OR/GY | PANEL LAMPS DRIVER |
| 3 | P237 20DG/TN | SECONDARY UNLOCK DRIVER (RHD) |
| 4 | - | - |
| 5 | P238 20TN/DG | DRIVER DOOR UNLOCK DRIVER |
| 6 | P235 20LG/TN | SECONDARY LOCK DRIVER (RHD) |
| 7 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 8 | Z936 18BK/LB | GROUND |
| 9 | P33 20TN/DB | DOOR LOCK DRIVER |
| 10 | A932 18RD/BR | FUSED B(+) (I.O.D.) |
