Inline Connector End View (C353 )

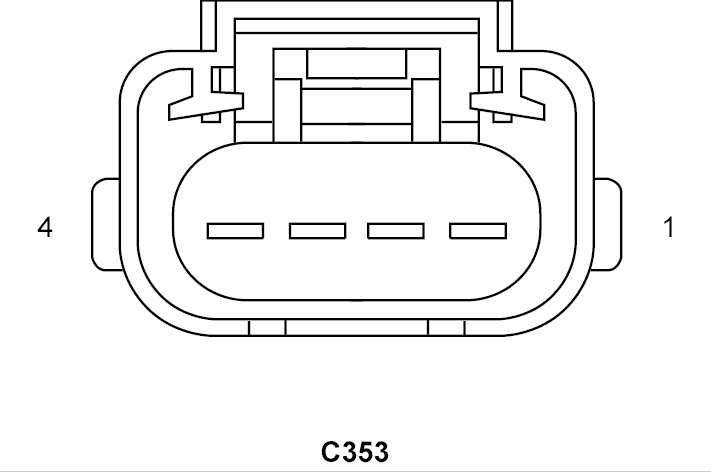

C353 - 4 WAY FEMALE

GMK880090Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
2 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
3 - -
4 - -

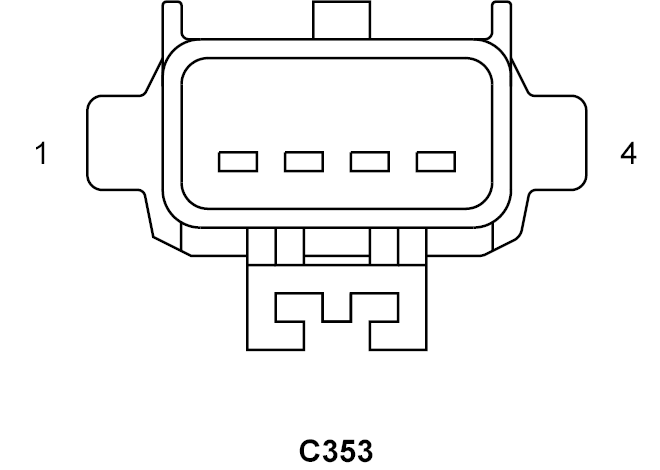

C353 - 4 WAY MALE

GMK880089Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
2 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
3 - -
4 - -
