Inline Connector End View (C352 )

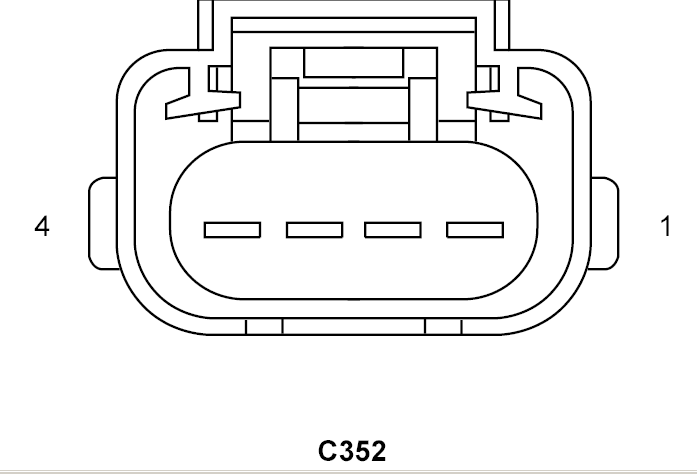

C352 - 4 WAY FEMALE

GMK880088Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
2 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
3 - -
4 - -

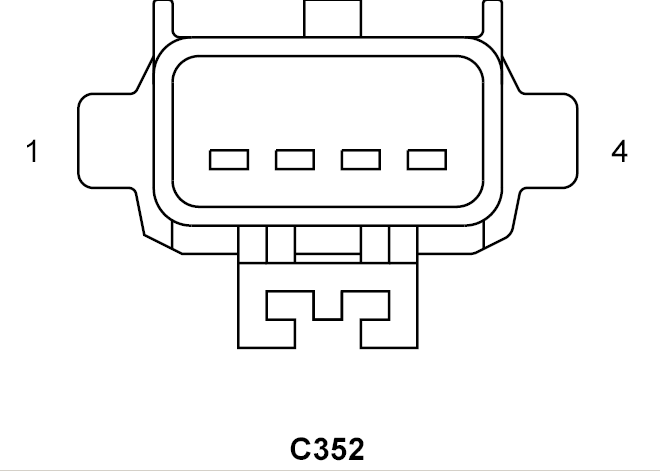

C352 - 4 WAY MALE

GMK880087Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
2 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
3 - -
4 - -
