Inline Connector End View (C312 )

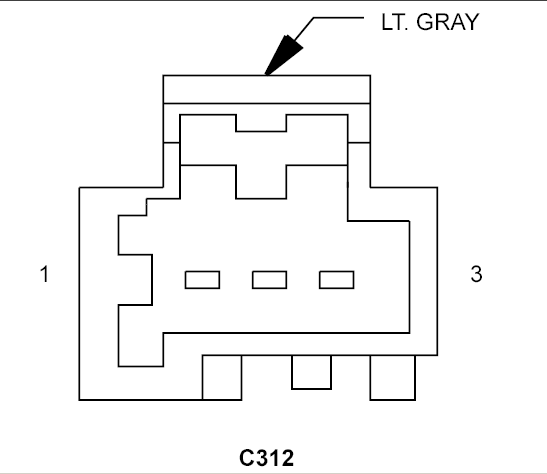

C312 - LT. GRAY 3 WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X16 20DG/YL |
AUDIO SIGNAL RIGHT (+) |
| 2 |
X17 20DG/OR |
AUDIO SIGNAL LEFT (+) |
| 3 |
X917 20DG |
AUDIO SIGNAL COMMON |

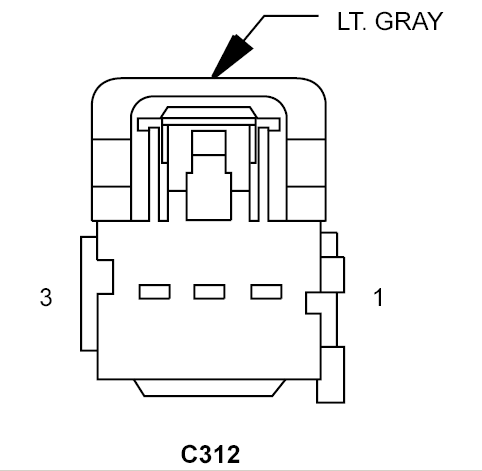

C312 - LT. GRAY 3 WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X16 22DG/YL |
AUDIO SIGNAL RIGHT (+) |
| 2 |
X17 22DG/OR |
AUDIO SIGNAL LEFT (+) |
| 3 |
X917 22DG |
AUDIO SIGNAL COMMON |
