Inline Connector End View (C310 )

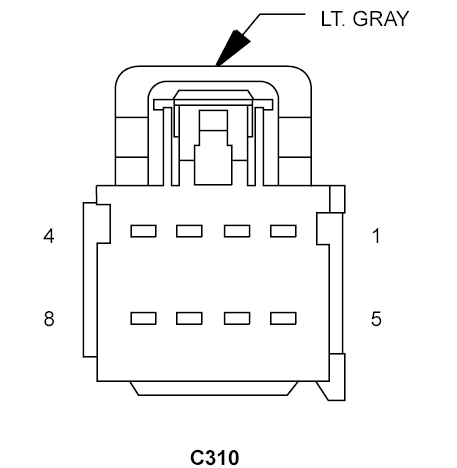

C310 - LT. GRAY 8 WAY FEMALE

GMK880080Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L53 20DG/WT STOP LAMP SWITCH OUTPUT
2 W13 20BR/LG REAR WIPER MOTOR CONTROL
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P33 20TN/DB DOOR LOCK DRIVER
6 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
7 - -
8 L217 20WT/VT PARK LAMP CONTROL OUTPUT

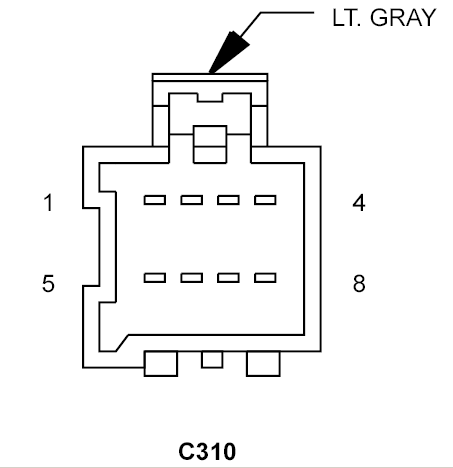

C310 - LT. GRAY 8 WAY MALE

GMK880079Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L53 20DG/WT STOP LAMP SWITCH OUTPUT
2 W13 20BR/LG REAR WIPER MOTOR CONTROL
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P33 20TN/DB DOOR LOCK DRIVER
6 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
7 - -
8 L217 20WT/VT PARK LAMP CONTROL OUTPUT
