Inline Connector End View (C308 )

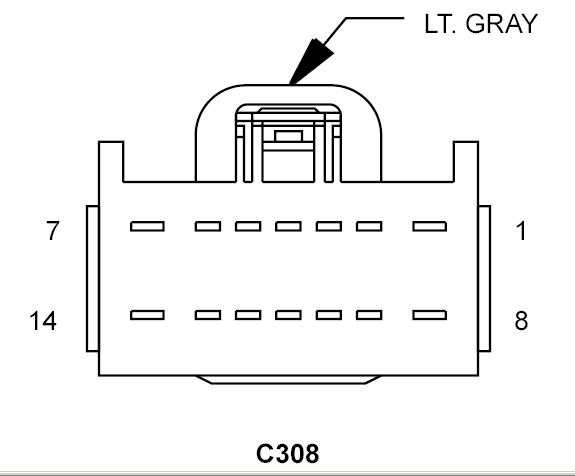

C308 - LT. GRAY 14 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | Q411 14OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 2 | P33 20TN/DB | DOOR LOCK DRIVER |
| 3 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 4 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 5 | X51 18DG/DB | LEFT REAR SPEAKER (+) (BASE) |
| 5 | X205 18GY/LG | AMPLIFIED LEFT REAR SPEAKER (+) (PREMIUM) |
| 6 | X57 18DG/BR | LEFT REAR SPEAKER (-) (BASE) |
| 6 | X295 18GY/DG | AMPLIFIED LEFT REAR SPEAKER (-) (PREMIUM) |
| 7 | Q15 14OR/RD | WINDOW LOCK OUT SWITCH OUTPUT |
| 8 | Q611 14OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 9 | Z964 18BK/WT | GROUND |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | P235 20LG/TN | SECONDARY LOCK DRIVER (RHD) |
| 14 | P237 20DG/TN | SECONDARY UNLOCK DRIVER (RHD) |

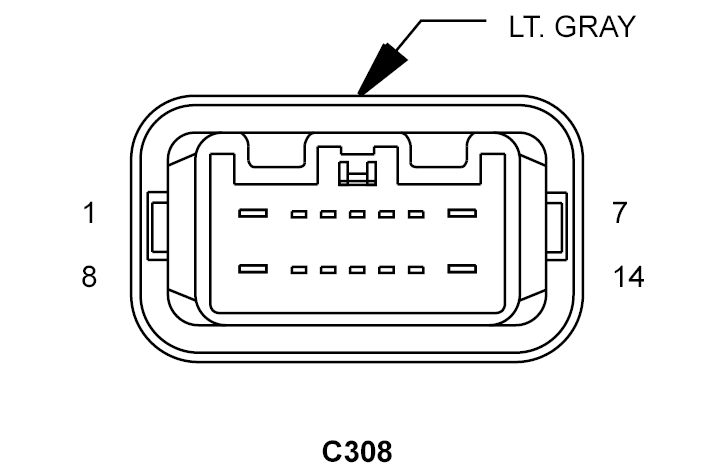

C308 - LT. GRAY 14 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | Q411 14OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 2 | P33 20TN/DB | DOOR LOCK DRIVER |
| 3 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 4 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 5 | X51 18DG/DB | LEFT REAR SPEAKER (+) (BASE) |
| 5 | X205 18GY/LG | AMPLIFIED LEFT REAR SPEAKER (+) (PREMIUM) |
| 6 | X57 18DG/BR | LEFT REAR SPEAKER (-) (BASE) |
| 6 | X295 18GY/DG | AMPLIFIED LEFT REAR SPEAKER (-) (PREMIUM) |
| 7 | Q15 14OR/RD | WINDOW LOCK OUT SWITCH OUTPUT |
| 8 | Q611 14OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 9 | Z928 20BK/LG | GROUND (LHD) |
| 9 | Z929 20BK/PK | GROUND (RHD) |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | P235 20LG/TN | SECONDARY LOCK DRIVER (RHD) |
| 14 | P237 20DG/TN | SECONDARY UNLOCK DRIVER (RHD) |
