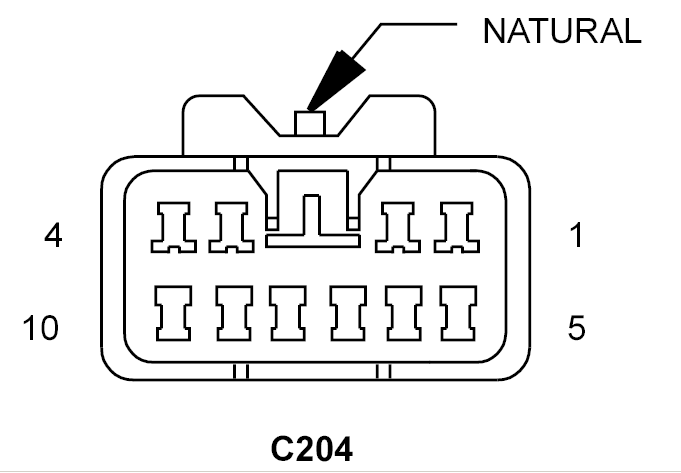

Inline Connector End View (C204 )
C204 - NATURAL 10 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | E12 20OR/GY | PANEL LAMPS DRIVER |
| 3 | - | - |
| 4 | F996 20PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 5 | P801 18LG/PK | 110 VOLT AC LINE 1 |
| 6 | P805 18LG/DB | INVERTER ENABLE SWITCH SIGNAL |
| 7 | P809 18LG/LB | 110 VOLT AC COMMON |
| 8 | K77 20BR/WT | TRANSFER CASE POSITION SENSOR INPUT |
| 9 | Z940 20BK/LG | GROUND |
| 10 | - | - |

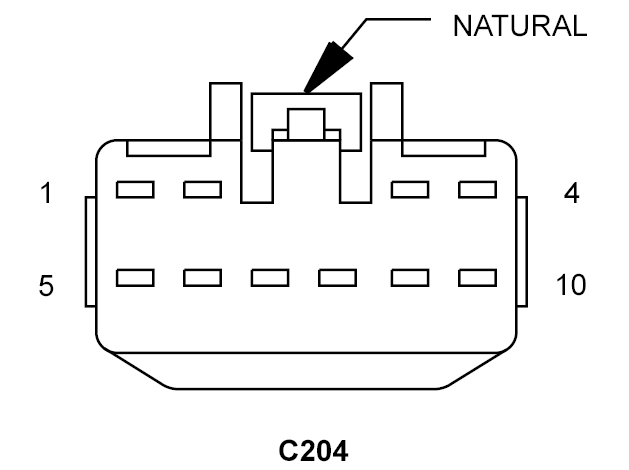

C204 - NATURAL 10 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | E12 20OR/GY | PANEL LAMPS DRIVER |
| 3 | - | - |
| 4 | F996 20PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 5 | P801 18LG/PK | 110 VOLT AC LINE 1 |
| 6 | P805 18LG/DB | INVERTER ENABLE SWITCH SIGNAL |
| 7 | P809 18LG/LB | 110 VOLT AC COMMON |
| 8 | K77 20BR/WT | TRANSFER CASE POSITION SENSOR INPUT |
| 9 | Z940 20BK/LG | GROUND (EXCEPT 5 SPEED MTX) |
| 10 | - | - |
