Inline Connector End View (C202 )

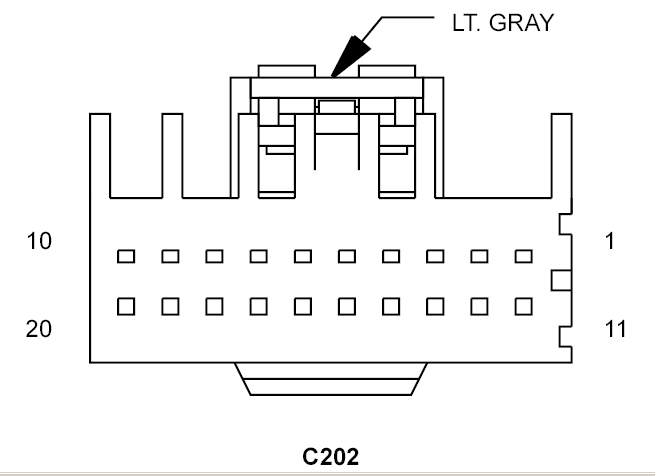

C202 - LT. GRAY 20 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | X712 20DG/LB | MICROPHONE 1 IN(+) (HANDS FREE) |
| 1 | A415 20RD/TN | FUSED B(+) (I.O.D.) (PREMIUM SECURITY) |
| 2 | X722 20LB/DG | MICROPHONE 2 IN(+) (HANDS FREE) |
| 3 | X730 20GY/YL | VOICE RECOGNITION/PHONE SWITCH SIGNAL (HANDS FREE) |
| 3 | D54 20WT/PK | CAN B BUS (-) (PREMIUM SECURITY) |
| 4 | X792 20LB/TN | MICROPHONE IN(-) (HANDS FREE) |
| 4 | D55 20WT/OR | CAN B BUS (+) (PREMIUM SECURITY) |
| 5 | X793 20DG/YL | MICROPHONE FEED (HANDS FREE) |
| 5 | D96 20WT/BR | SIREN SIGNAL CONTROL (PREMIUM SECURITY) |
| 6 | X835 20OR/BK | SENSOR GROUND |
| 7 | Z936 18BK/LB | GROUND |
| 8 | Z941 20BK/WT | GROUND |
| 9 | L1 20WT/LG | BACKUP LAMP SWITCH OUTPUT |
| 10 | A417 20RD/DG | FUSED B(+) (I.O.D.) |
| 11 | G38 20GY/BK | UGDO ENABLE CONTROL CIRCUIT |
| 12 | M24 20YL/WT | COURTESY LAMPS DRIVER |
| 13 | M27 20YL/LB | READING/RAIL LAMPS DRIVER |
| 14 | Q4 20OR/YL | SUNROOF VENT SWITCH SENSE |
| 15 | Q5 20OR/LB | SUNROOF CLOSE SWITCH SENSE |
| 16 | Q6 20OR/LG | SUNROOF SWITCH SUPPLY |
| 17 | Q3 20OR/TN | SUNROOF OPEN SWITCH SENSE |
| 18 | - | - |
| 19 | F202 18PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 20 | F985 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |

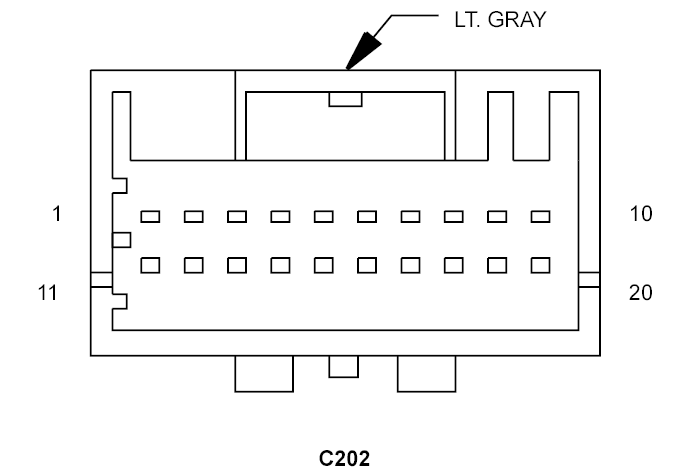

C202 - LT. GRAY 20 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | X712 20DG/LB | MICROPHONE 1 IN(+) (HANDS FREE) |
| 1 | A415 20RD/TN | FUSED B(+) (I.O.D.) (PREMIUM SECURITY) |
| 2 | X722 20LB/DG | MICROPHONE 2 IN(+) (HANDS FREE) |
| 3 | X730 20GY/YL | VOICE RECOGNITION/PHONE SWITCH SIGNAL (HANDS FREE) |
| 3 | D54 20WT/PK | CAN B BUS (-) (PREMIUM SECURITY) |
| 4 | X792 20LB/TN | MICROPHONE IN(-) (HANDS FREE) |
| 4 | D55 20WT/OR | CAN B BUS (+) (PREMIUM SECURITY) |
| 5 | X793 20DG/YL | MICROPHONE FEED (HANDS FREE) |
| 5 | D96 20WT/BR | SIREN SIGNAL CONTROL (PREMIUM SECURITY) |
| 6 | X835 20OR/BK | SENSOR GROUND |
| 7 | Z936 18BK/LB | GROUND |
| 8 | Z941 20BK/WT | GROUND |
| 9 | L1 20WT/LG | BACKUP LAMP SWITCH OUTPUT |
| 10 | A417 20RD/DG | FUSED B(+) (I.O.D.) |
| 11 | G38 20GY/BK | UGDO ENABLE CONTROL CIRCUIT |
| 12 | M24 20YL/WT | COURTESY LAMPS DRIVER |
| 13 | M27 20YL/LB | READING/RAIL LAMPS DRIVER |
| 14 | Q4 20OR/YL | SUNROOF VENT SWITCH SENSE |
| 15 | Q5 20OR/LB | SUNROOF CLOSE SWITCH SENSE |
| 16 | Q6 20OR/LG | SUNROOF SWITCH SUPPLY |
| 17 | Q3 20OR/TN | SUNROOF OPEN SWITCH SENSE |
| 18 | - | - |
| 19 | F202 20PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 20 | F985 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
