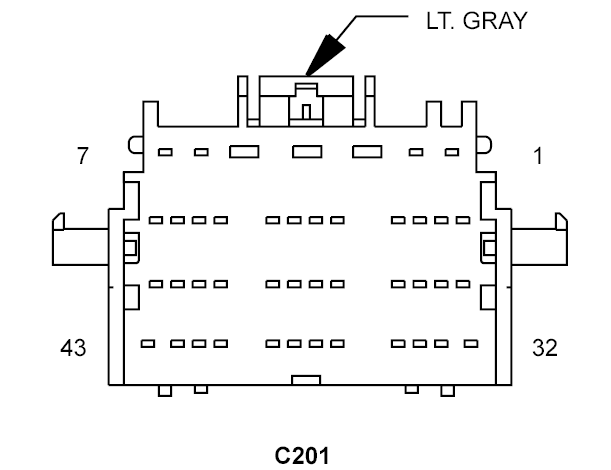

Inline Connector End View (C201 )
C201 - LT. GRAY 43 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | A411 20RD/LG | FUSED B(+) (I.O.D.) |
| 2 | A412 20RD/DB | FUSED B(+) (I.O.D.) |
| 3 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 4 | C7 12DB/PK | BLOWER MOTOR CONTROL (EXCEPT EXPORT BASE) |
| 4 | A415 20RD/TN | FUSED B(+) (I.O.D.) (EXPORT) |
| 5 | A417 20RD/DG | FUSED B(+) (I.O.D.) (EXCEPT EXPORT) |
| 5 | C7 12DB/PK | BLOWER MOTOR CONTROL (EXPORT BASE) |
| 6 | - | - |
| 7 | T44 20YL/DG | AUTOSTICK DOWNSHIFT SWITCH SIGNAL |
| 8 | T5 20DG/LG | AUTOSTICK UPSHIFT SWITCH SIGNAL |
| 9 | V71 20VT/OR | S/C SIGNAL 1 |
| 10 | V72 20OR/VT | S/C SIGNAL 2 |
| 11 | V937 20VT/LG | S/C SWITCH GROUND |
| 12 | A932 18RD/BR | FUSED B(+) (I.O.D.) |
| 13 | A952 20RD/OR | FUSED B(+) |
| 14 | R64 20LB/WT | PASSENGER SQUIB 2 LINE 1 |
| 15 | - | - |
| 16 | A927 20RD/GY | FUSED B(+) |
| 17 | - | - |
| 18 | A935 20RD/LB | FUSED B(+) |
| 19 | A999 18RD/PK | FUSED B(+) |
| 20 | X298 18GY/LG | RIGHT INSTRUMENT PANEL SPEAKER (-) (PREMIUM) |
| 21 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 22 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 23 | X202 18DG/VT | RIGHT FRONT DOOR SPEAKER (+) (BASE) |
| 24 | X292 18DG/YL | RIGHT FRONT DOOR SPEAKER (-) (BASE) |
| 25 | X51 18DG/DB | LEFT REAR SPEAKER (+) |
| 26 | X52 18GY/DB | RIGHT REAR SPEAKER (+) |
| 27 | X58 18GY/OR | RIGHT REAR SPEAKER (-) |
| 28 | - | - |
| 29 | R61 20LG/VT | DRIVER SQUIB 2 LINE 2 |
| 30 | R62 20LB/VT | PASSENGER SQUIB 2 LINE 2 |
| 31 | R63 20LG/BK | DRIVER SQUIB 2 LINE 1 |
| 32 | - | - |
| 33 | D64 20WT/LB | CAN C BUS (-) |
| 33 | D64 20WT/LB | CAN C BUS (-) |
| 34 | D65 20WT/BK | CAN C BUS (+) |
| 34 | D65 20WT/BK | CAN C BUS (+) |
| 35 | X57 18DG/BR | LEFT REAR SPEAKER (-) |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | X208 18GY/DG | RIGHT INSTRUMENT PANEL SPEAKER (+) |
| 41 | X209 18GY/TN | LEFT INSTRUMENT PANEL SPEAKER (+) |
| 42 | X299 18GY/BR | LEFT INSTRUMENT PANEL SPEAKER (-) |
| 43 | - | - |

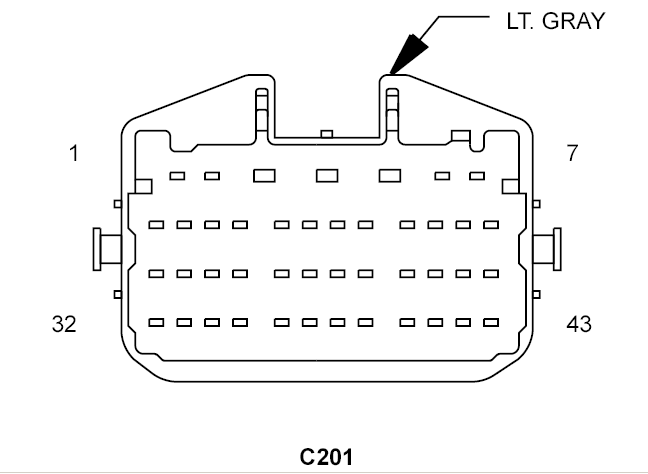

C201 - LT. GRAY 43 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | A411 20RD/LG | FUSED B(+) (I.O.D.) |
| 2 | A412 20RD/DB | FUSED B(+) (I.O.D.) |
| 3 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 4 | C7 12DB/PK | BLOWER MOTOR CONTROL (EXCEPT EXPORT BASE) |
| 4 | A415 20RD/TN | FUSED B(+) (I.O.D.) (EXPORT) |
| 5 | A417 20RD/DG | FUSED B(+) (I.O.D.) (EXCEPT EXPORT) |
| 5 | C7 12DB/PK | BLOWER MOTOR CONTROL (EXPORT BASE) |
| 6 | - | - |
| 7 | T44 20YL/DG | AUTOSTICK DOWNSHIFT SWITCH SIGNAL |
| 8 | T5 20DG/LG | AUTOSTICK UPSHIFT SWITCH SIGNAL |
| 9 | V71 20VT/OR | S/C SIGNAL 1 |
| 10 | V72 20OR/VT | S/C SIGNAL 2 |
| 11 | V937 20VT/LG | S/C SWITCH GROUND |
| 12 | A932 18RD/BR | FUSED B(+) (I.O.D.) |
| 13 | A952 20RD/OR | FUSED B(+) |
| 14 | R64 18LB/WT | PASSENGER SQUIB 2 LINE 1 |
| 15 | - | - |
| 16 | A927 20RD/GY | FUSED B(+) |
| 17 | - | - |
| 18 | A935 20RD/LB | FUSED B(+) |
| 19 | A999 16RD/PK | FUSED B(+) |
| 20 | X298 18GY/LG | RIGHT INSTRUMENT PANEL SPEAKER (-) |
| 21 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 22 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 23 | X202 18DG/VT | RIGHT FRONT DOOR SPEAKER (+) (BASE) |
| 24 | X292 18DG/YL | RIGHT FRONT DOOR SPEAKER (-) (BASE) |
| 25 | X51 18DG/DB | LEFT REAR SPEAKER (+) |
| 26 | X52 18GY/DB | RIGHT REAR SPEAKER (+) |
| 27 | X58 18GY/OR | RIGHT REAR SPEAKER (-) |
| 28 | - | - |
| 29 | R61 18LG/VT | DRIVER SQUIB 2 LINE 2 |
| 30 | R62 18LB/VT | PASSENGER SQUIB 2 LINE 2 |
| 31 | R63 18LG/BK | DRIVER SQUIB 2 LINE 1 |
| 32 | - | - |
| 33 | D64 20WT/LB | CAN C BUS (-) |
| 34 | D65 20WT/BK | CAN C BUS (+) |
| 35 | X57 18DG/BR | LEFT REAR SPEAKER (-) |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | X208 18GY/DG | RIGHT INSTRUMENT PANEL SPEAKER (+) |
| 41 | X209 18GY/TN | LEFT INSTRUMENT PANEL SPEAKER (+) |
| 42 | X299 18GY/BR | LEFT INSTRUMENT PANEL SPEAKER (-) |
| 43 | - | - |
