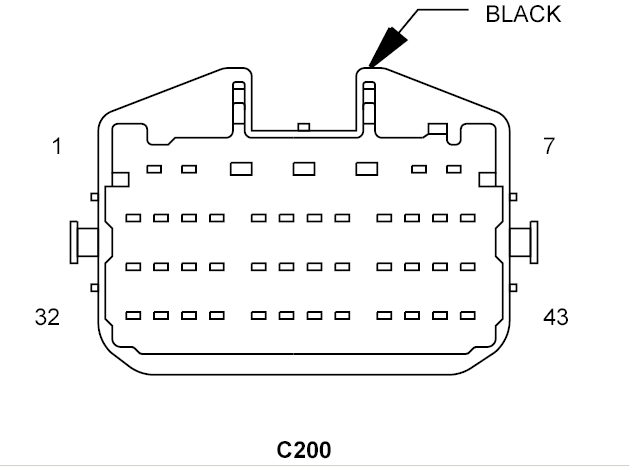

Inline Connector End View (C200 )
C200 - BLACK 43 WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | G78 20VT/OR | LIFTGATE AJAR SWITCH SENSE |
| 2 | P235 20LG/TN | SECONDARY LOCK DRIVER (RHD) |
| 3 | P237 20DG/TN | SECONDARY UNLOCK DRIVER (RHD) |
| 4 | D54 20WT/PK | CAN B BUS (-) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | F202 18PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 7 | F996 20PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 8 | L1 20WT/LG | BACKUP LAMP SWITCH OUTPUT |
| 9 | D96 20WT/BR | SIREN SIGNAL CONTROL (EXPORT) |
| 10 | F929 20PK/RD | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 11 | P33 20TN/DB | DOOR LOCK DRIVER |
| 12 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 13 | F986 20PK/BK | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 14 | X60 20GY/RD | POWER ANTENNA SIGNAL |
| 15 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 16 | N4 20DB/WT | FUEL LEVEL SIGNAL 1 |
| 17 | G75 20VT/DB | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 18 | R9 20LB/YL | DRIVER KNEE BLOCKER SQUIB LINE 2 |
| 19 | R11 20LB/DB | DRIVER KNEE BLOCKER SQUIB LINE 1 |
| 20 | R43 20LG/BR | DRIVER SQUIB 1 LINE 2 |
| 21 | - | - |
| 22 | D508 20WT/GY | COM-LIN TIRE PRESSURE MONITOR LAN |
| 23 | G76 20VT/YL | RIGHT REAR DOOR AJAR SWITCH SENSE |
| 24 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 25 | - | - |
| 26 | - | - |
| 27 | L53 20DG/WT | STOP LAMP SWITCH OUTPUT |
| 28 | N5 20DB/BK | FUEL LEVEL SIGNAL 2 |
| 29 | - | - |
| 30 | P697 20LG/DG | DOOR LOCK SWITCH MUX |
| 31 | R42 20LB/BR | PASSENGER SQUIB 1 LINE 2 |
| 32 | - | - |
| 33 | R44 20LB/OR | PASSENGER SQUIB 1 LINE 1 |
| 34 | R45 20LG/RD | DRIVER SQUIB 1 LINE 1 |
| 35 | R57 20LG/GY | DRIVER SEAT BELT SWITCH SENSE |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | P238 20TN/DG | DRIVER DOOR UNLOCK DRIVER |
| 40 | - | - |
| 41 | D506 20WT/DG | LIN BUS (HEATED SEATS) |
| 42 | F20 20PK/WT | IGNITION SWITCH OUTPUT (RUN-START) |
| 43 | F985 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |

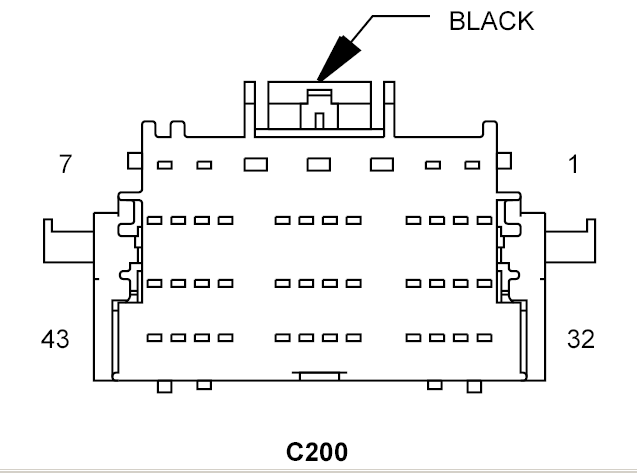

C200 - BLACK 43 WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | G78 20VT/OR | LIFTGATE AJAR SWITCH SENSE |
| 2 | P235 20LG/TN | SECONDARY LOCK DRIVER (RHD) |
| 3 | P237 20DG/TN | SECONDARY UNLOCK DRIVER (RHD) |
| 4 | D54 20WT/PK | CAN B BUS (-) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | F202 18PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 7 | F996 20PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 8 | L1 20WT/LG | BACKUP LAMP SWITCH OUTPUT |
| 9 | D96 20WT/BR | SIREN SIGNAL CONTROL |
| 10 | F929 20PK/RD | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 11 | P33 20TN/DB | DOOR LOCK DRIVER |
| 12 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 13 | F986 20PK/BK | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 14 | X60 20GY/RD | POWER ANTENNA SIGNAL |
| 15 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 16 | N4 20DB/WT | FUEL LEVEL SIGNAL 1 |
| 17 | G75 20VT/DB | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 18 | - | - |
| 19 | - | - |
| 20 | R43 18LG/BR | DRIVER SQUIB 1 LINE 2 |
| 21 | - | - |
| 22 | D508 20WT/GY | COM-LIN TIRE PRESSURE MONITOR LAN |
| 23 | G76 20VT/YL | RIGHT REAR DOOR AJAR SWITCH SENSE |
| 24 | G77 20VT/GY | LEFT REAR DOOR AJAR SWITCH SENSE |
| 25 | - | - |
| 26 | - | - |
| 27 | L53 20DG/WT | STOP LAMP SWITCH OUTPUT |
| 28 | N5 20DB/BK | FUEL LEVEL SIGNAL 2 |
| 29 | - | - |
| 30 | P697 20LG/DG | DOOR LOCK SWITCH MUX |
| 31 | R42 18LB/BR | PASSENGER SQUIB 1 LINE 2 |
| 32 | - | - |
| 33 | R44 18LB/OR | PASSENGER SQUIB 1 LINE 1 |
| 34 | R45 18LG/RD | DRIVER SQUIB 1 LINE 1 |
| 35 | R57 20LG/GY | DRIVER SEAT BELT SWITCH SENSE |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | P238 20TN/DG | DRIVER DOOR UNLOCK DRIVER |
| 40 | - | - |
| 41 | D506 20WT/DG | LIN BUS (HEATED SEATS) |
| 42 | F20 20PK/WT | IGNITION SWITCH OUTPUT (RUN-START) |
| 43 | F985 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
