Ignition Capacitor (Gas) Connector End View
Ignition Capacitor (Gas) Connector End View

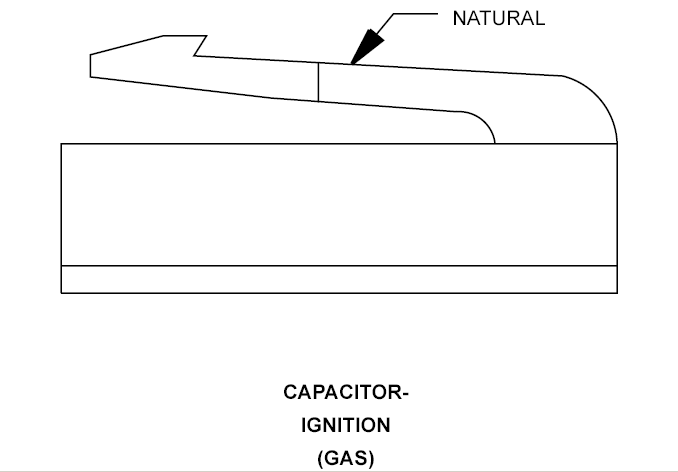

CAPACITOR-IGNITION - NATURAL 1 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F344 18DB/LB
FUSED MAIN RELAY OUTPUT
Courtesy of CHRYSLER CORP.
