Glow Plug 2 (Diesel) Connector End View
Glow Plug 2 (Diesel) Connector End View

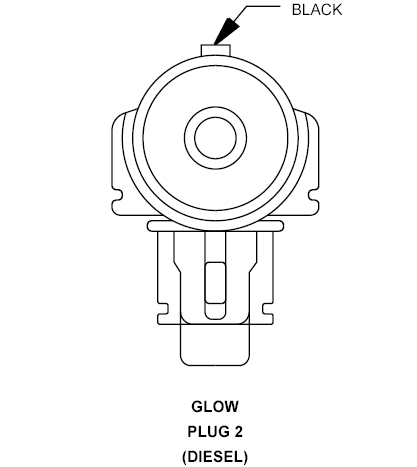

GLOW PLUG 2 - BLACK 1 WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A203 16BK/DB
GLOW PLUG 2 CONTROL
Courtesy of CHRYSLER CORP.
