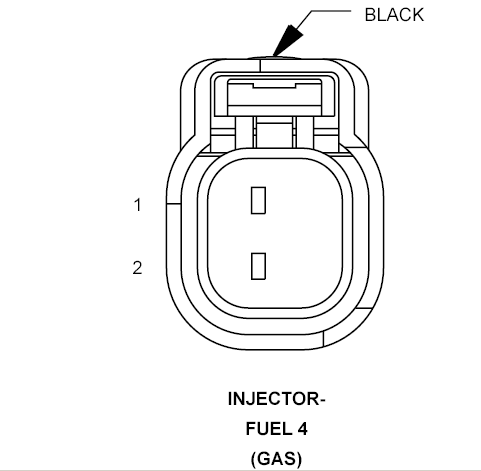

Fuel Injector 4 (Gas) Connector End View
Fuel Injector 4 (Gas) Connector End View
INJECTOR-FUEL 4 - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K14 20BR/TN
INJECTOR 4 CONTROL
2
F343 20DB/LG
FUSED MAIN RELAY OUTPUT
Courtesy of CHRYSLER CORP.
