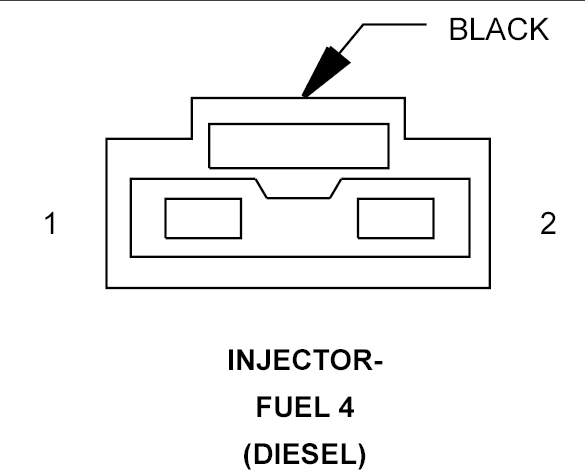

Fuel Injector 4 (Diesel) Connector End View

INJECTOR-FUEL 4 - BLACK 2 WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K663 16BR/YL	FUEL INJECTOR HIGH-SIDE COMMON
2	K614 16BR/LB	FUEL INJECTOR 4 LOW-SIDE CONTROL
