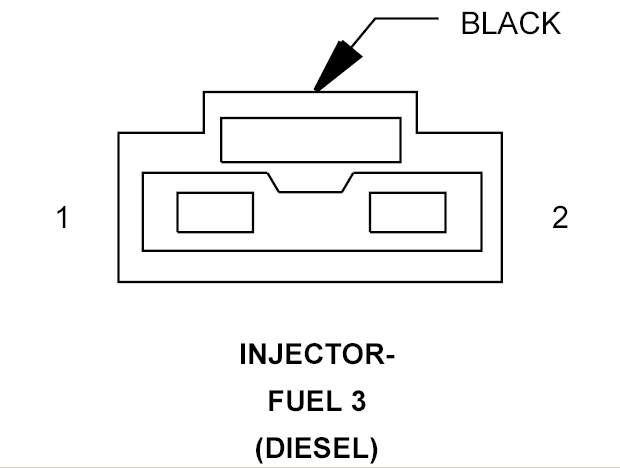

Fuel Injector 3 (Diesel) Connector End View

INJECTOR-FUEL 3 - BLACK 2 WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K663 16BR/YL	FUEL INJECTOR HIGH-SIDE COMMON
2	K613 16BR/WT	FUEL INJECTOR 3 LOW-SIDE CONTROL
