Fuel Injector 2 (Gas) Connector End View

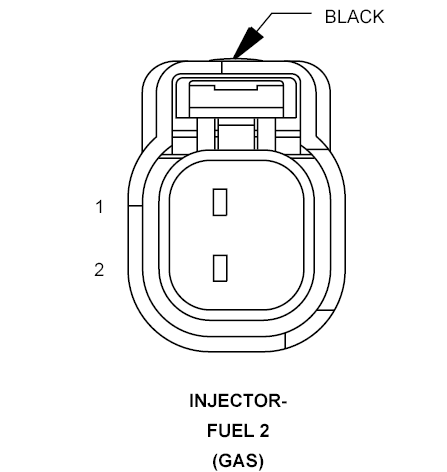

Fuel Injector 2 (Gas) Connector End View
INJECTOR-FUEL 2 - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K12 20BR/DB
INJECTOR 2 CONTROL
2
F343 20DB/LG
FUSED MAIN RELAY OUTPUT
Courtesy of CHRYSLER CORP.
