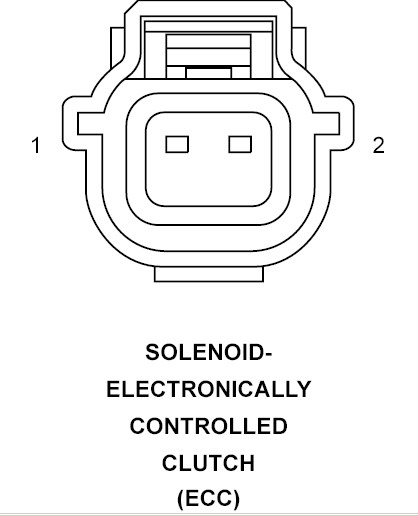

Electronically Controlled Clutch Solenoid Connector End View

SOLENOID-ELECTRONICALLY CONTROLLED CLUTCH - 2 WAY (ECC)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T312 20YL/VT	REAR DIFFERENTIAL SOLENOID CONTROL
2	T78 20YL	SOLENOID SUPPLY VOLTAGE
