Electric Heated Backlite (Power) Connector End View
Electric Heated Backlite (Power) Connector End View

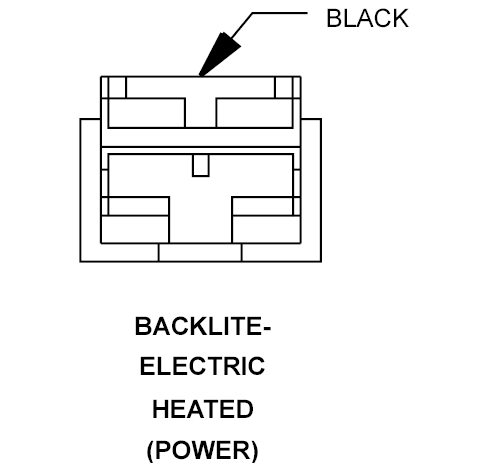

BACKLITE-ELECTRIC HEATED - BLACK 1 WAY (POWER)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C515 12LB/OR
REAR WINDOW DEFOGGER CONTROL OUTPUT
Courtesy of CHRYSLER CORP.
