Driver Squib Airbag 1 Connector End View
Driver Squib Airbag 1 Connector End View

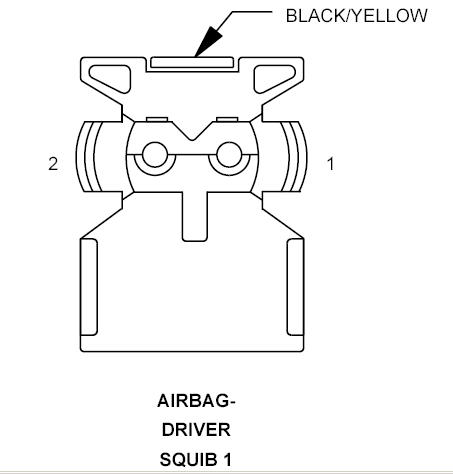

AIRBAG-DRIVER SQUIB 1 - BLACK/YELLOW 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R45 20LB
DRIVER SQUIB 1 LINE 1
2
R43 20BR
DRIVER SQUIB 1 LINE 2
Courtesy of CHRYSLER CORP.
