Door Liftgate Latch Connector End View (C2)

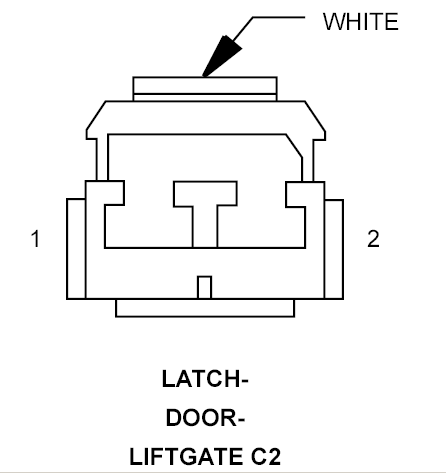

Door Liftgate Latch Connector End View (C2)
LATCH-DOOR-LIFTGATE C2 - WHITE 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G78 20VT/OR
LIFTGATE AJAR SWITCH SENSE
2
Z960 18BK/LB
GROUND
Courtesy of CHRYSLER CORP.
