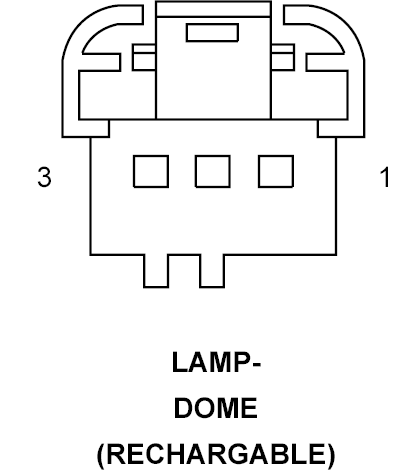

Dome Lamp (Rechargeable) Connector End View
Dome Lamp (Rechargeable) Connector End View
LAMP-DOME - 3 WAY (RECHARGEABLE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F985 18PK/YL
FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2
M24 20YL/WT
COURTESY LAMPS DRIVER
3
Z936 18BK/LB
GROUND
Courtesy of CHRYSLER CORP.
