Crankshaft Position Sensor (Gas) Connector End View

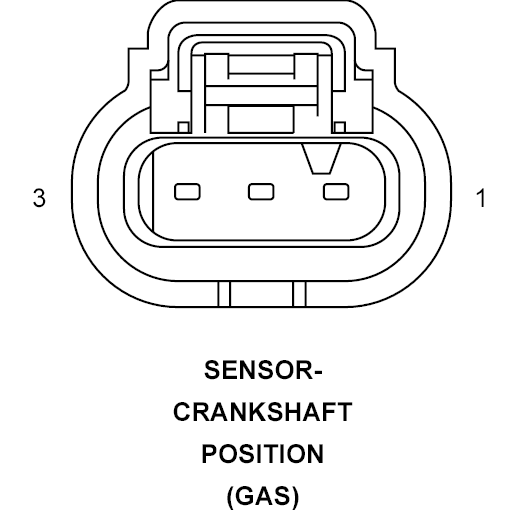

Crankshaft Position Sensor (Gas) Connector End View
SENSOR-CRANKSHAFT POSITION - 3 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F855 20PK/YL
5 VOLT SUPPLY
2
K900 20DB/DG
SENSOR GROUND
3
K24 20LB/BR
CKP SIGNAL
Courtesy of CHRYSLER CORP.
