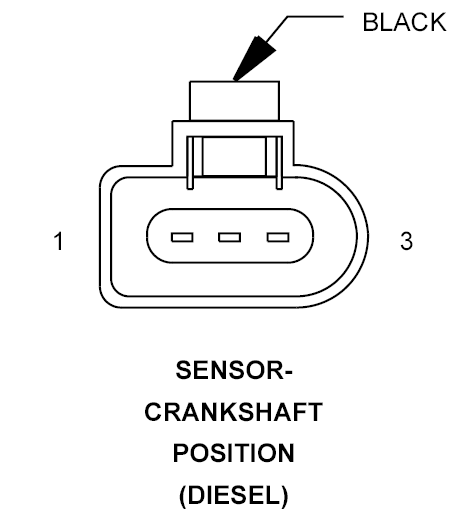

Crankshaft Position Sensor (Diesel) Connector End View
SENSOR-CRANKSHAFT POSITION - BLACK 3 WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K853 20DB/BR |
CKP SENSOR 5 VOLT SUPPLY |
| 2 |
K24 20BR/DB |
CKP SENSOR SIGNAL |
| 3 |
K925 20DB/GY |
CKP SENSOR GROUND |
