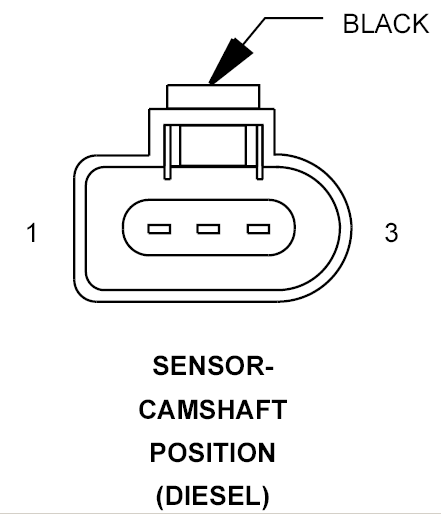

Camshaft Position Sensor (Diesel) Connector End View
SENSOR-CAMSHAFT POSITION - BLACK 3 WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K844 20DB/YL |
CMP SENSOR 5 VOLT SUPPLY |
| 2 |
K44 20DB/GY |
CMP 1/1 SIGNAL |
| 3 |
K944 20BK/GY |
CMP SENSOR GROUND |
