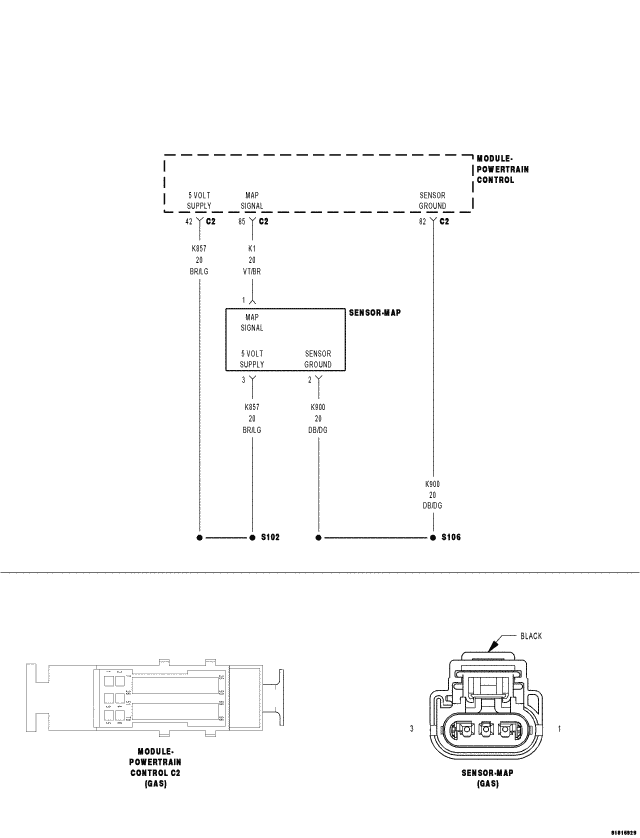

Home >> Jeep >> 2008 >> Compass Limited, AWD, Automatic CVT >> Repair and Diagnosis >> Engine Performance >> System >> DTC U1418, Checking For Intermittent Condition, System Checks, Component Checks >> *Checking The Map Sensor Operation >> Circuit Schematic
