Removal - Timing Chain

Fig 1: TDC

Courtesy of CHRYSLER LLC

Set engine to TDC.
Remove timing chain cover. See REMOVAL ).

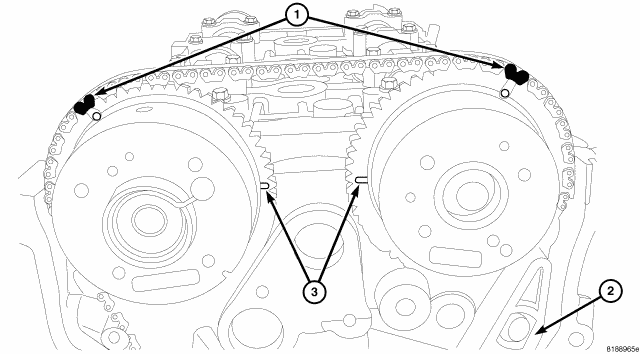

Fig 2: Timing Chain Timing Marks
Courtesy of CHRYSLER LLC

NOTE: If the timing chain plated links can no longer be seen, the timing chain links corresponding to the timing marks must be marked prior to removal if the chain is to be reused.
Mark chain link (1) corresponding to camshaft timing mark.

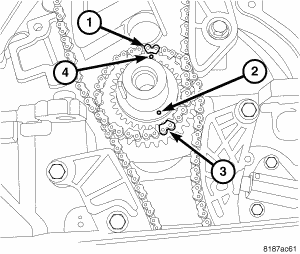

Fig 3: Crankshaft Timing Marks
Courtesy of CHRYSLER LLC
Mark chain link (3) corresponding to crankshaft timing mark (2).

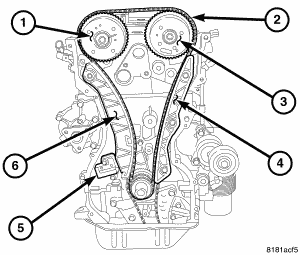

Fig 4: Timing Drive
Courtesy of CHRYSLER LLC

1 - Item_1

2 - Item _2
Remove timing chain tensioner (5). See REMOVAL .
Remove timing chain (2).
