Engine Mount - Right

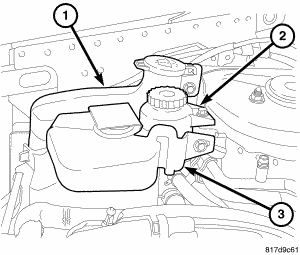

Fig 1: Coolant Reservoir
GC0054968Courtesy of CHRYSLER LLC
  1. Remove coolant reservoir (3) and set aside.
  2. Remove power steering reservoir (2) and set aside.
  3. Remove windshield washer bottle (1).

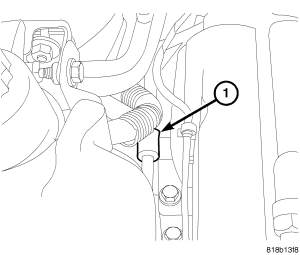

    Fig 2: Power Steering Line Support Bracket
    GC0054969Courtesy of CHRYSLER LLC
  4. Remove power steering line support bracket (1) from engine mount.

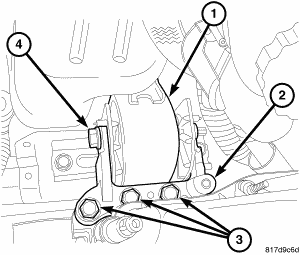

    Fig 3: Right Mount
    GC0054970Courtesy of CHRYSLER LLC
  5. Support transaxle with a block of wood and a suitable jack.
  6. Remove engine mount through bolt (4).
  7. Remove engine mount bracket bolts (3).
  8. Remove engine mount retaining bolts.
  9. Remove engine mount.
