Air Cleaner Element

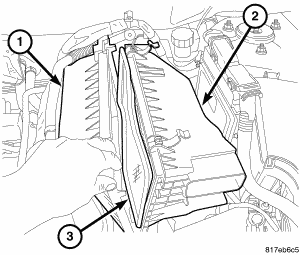

Fig 1: Air Filter Element
GC0054906Courtesy of CHRYSLER LLC
  1. Install new filter element.

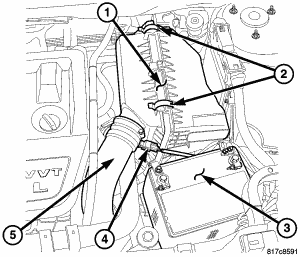

    Fig 2: Air Cleaner Housing
    GC0054907Courtesy of CHRYSLER LLC
  2. Place cover over air cleaner housing. Snap clasps (2) in place.
  3. Install air inlet tube (5).
  4. Connect intake air temperature sensor connector (4).

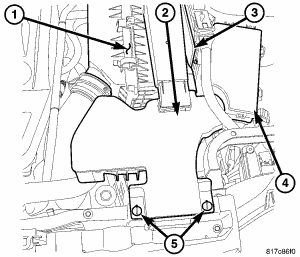

    Fig 3: Air Cleaner Housing Assembly
    GC0054908Courtesy of CHRYSLER LLC
  5. Install fresh air inlet (2) on air cleaner housing (1) and lock retainers (5).
