Home >> Jeep >> 2008 >> Commander Overland, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0198 To P0335 >> P0204-Fuel Injector 4 Circuit >> Circuit Schematic

Circuit Schematic

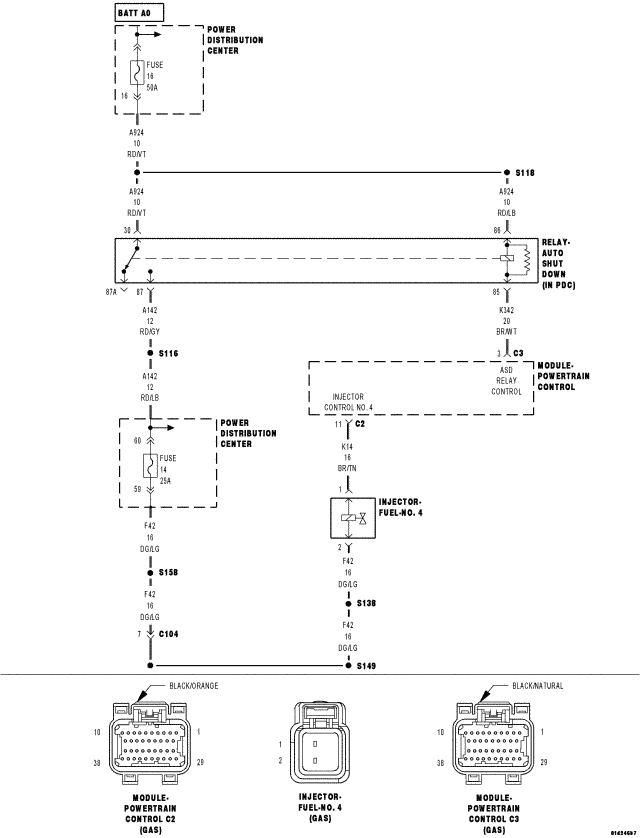

Fig 1: Fuel Injector Circuit Schematic
GC0075695Courtesy of CHRYSLER LLC
