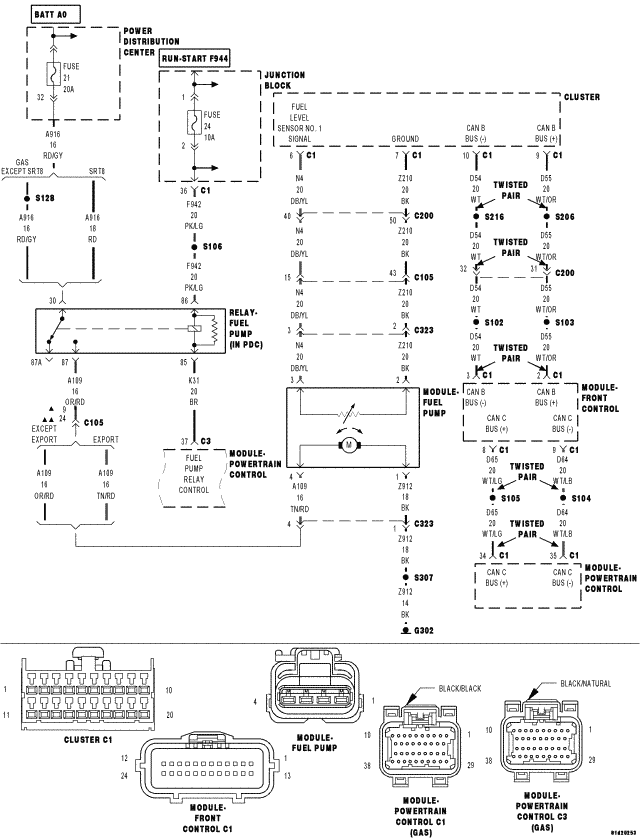

Home >> Jeep >> 2008 >> Commander Overland, 4WD >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DTCS P0339 To P0507 >> P0461-Fuel Level Sensor 1 Performance >> Circuit Schematic
