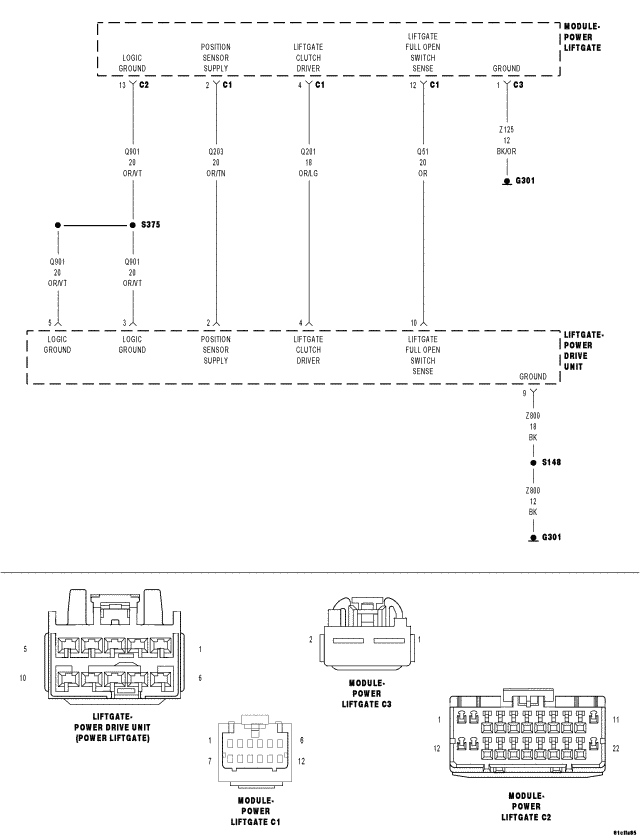

Home >> Jeep >> 2008 >> Commander Overland, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Power Liftgate System - Electrical Diagnostics >> Power Liftgate - Electrical Diagnostics >> DTC Troubleshooting >> B1969-Power Liftgate Open Direction Excessive Position Sensor Counts >> Circuit Schematic
