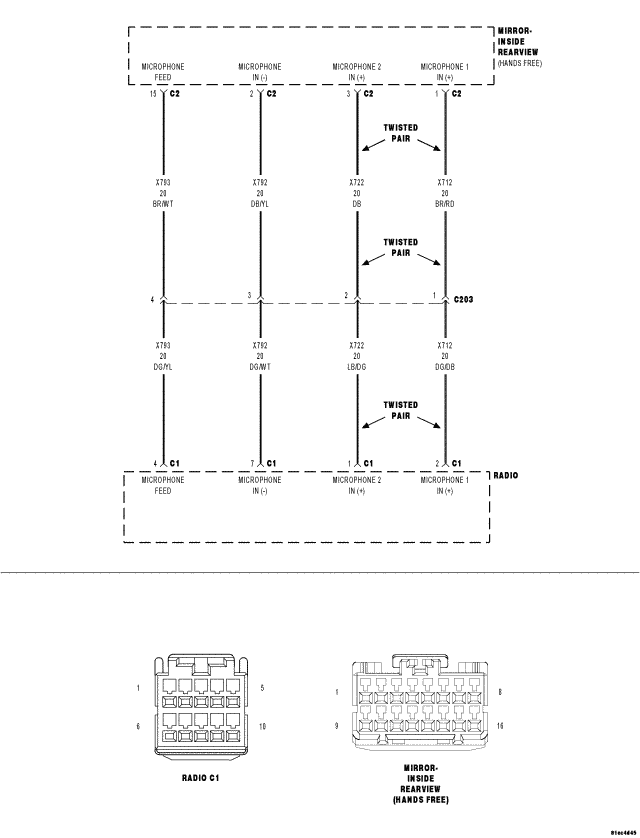

Home >> Jeep >> 2008 >> Commander Base, 4.7 N, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Navigation System & Telecommunication System - Electrical Diagnostics >> Navigation/Telecommunication - Electrical Diagnostics >> DTC Troubleshooting >> B14B8-Microphone 2 Circuit Open (Radio) >> Circuit Schematic
