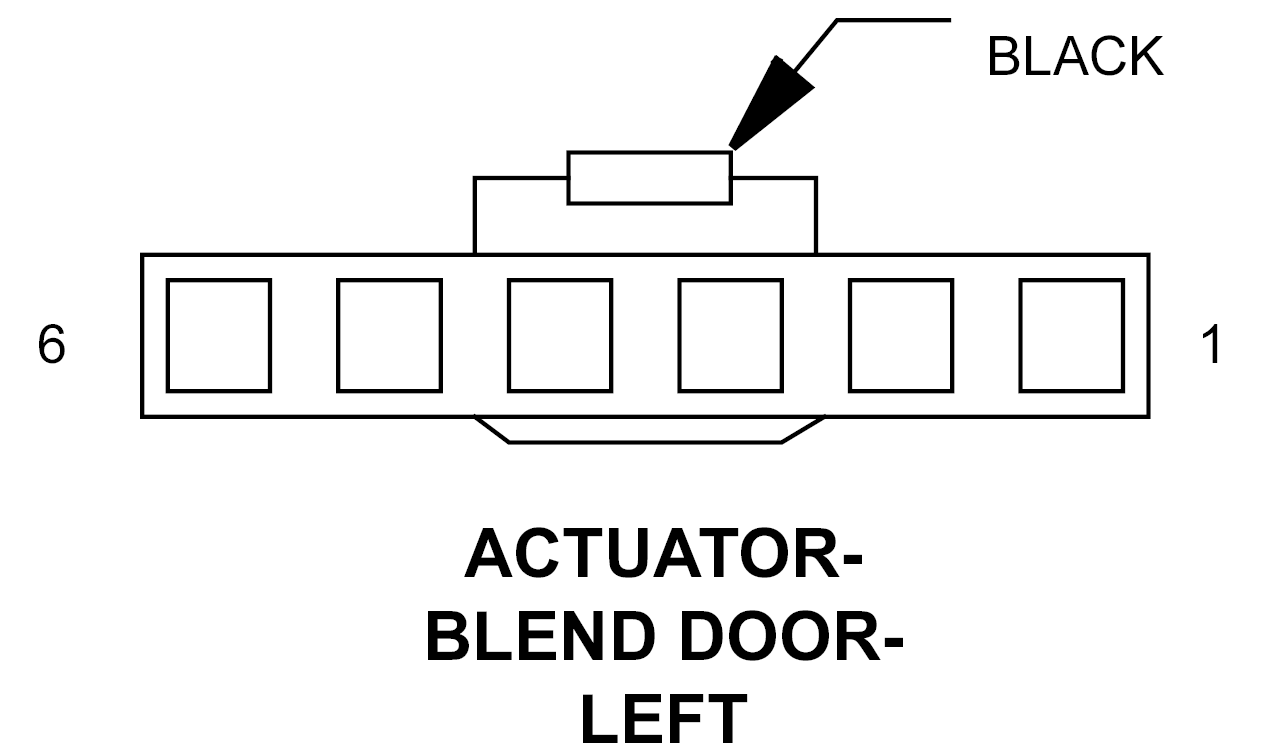

Left Blend Door Actuator Connector End View

ACTUATOR-BLEND DOOR-LEFT - BLACK 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	C255 20LG/YL	LEFT BLEND DOOR DRIVER
6	C55 20LB/YL	LEFT BLEND DOOR COMMON DRIVER
