Upper Control Arm

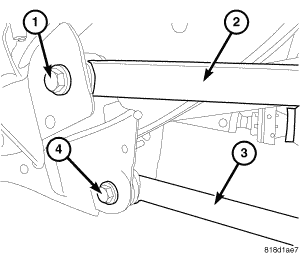

Fig 1: Upper & Lower Suspension Arms
GC0063459Courtesy of CHRYSLER LLC
NOTE: Position the paint dot located on the control arm toward the axle and facing outboard. If paint dot is not visible, the bend should point inboard, and the short end should attach to the axle side.
  1. Position the upper suspension arm (2) in the axle bracket and frame rail mount.
  2. Install the mounting bolt (1) and finger tighten.
  3. Remove the supports and lower the vehicle.
  4. Tighten the upper suspension arm bolts to 169 N.m (125 ft. lbs.) with vehicle weight.
