INA Decoupler
Courtesy of CHRYSLER LLC

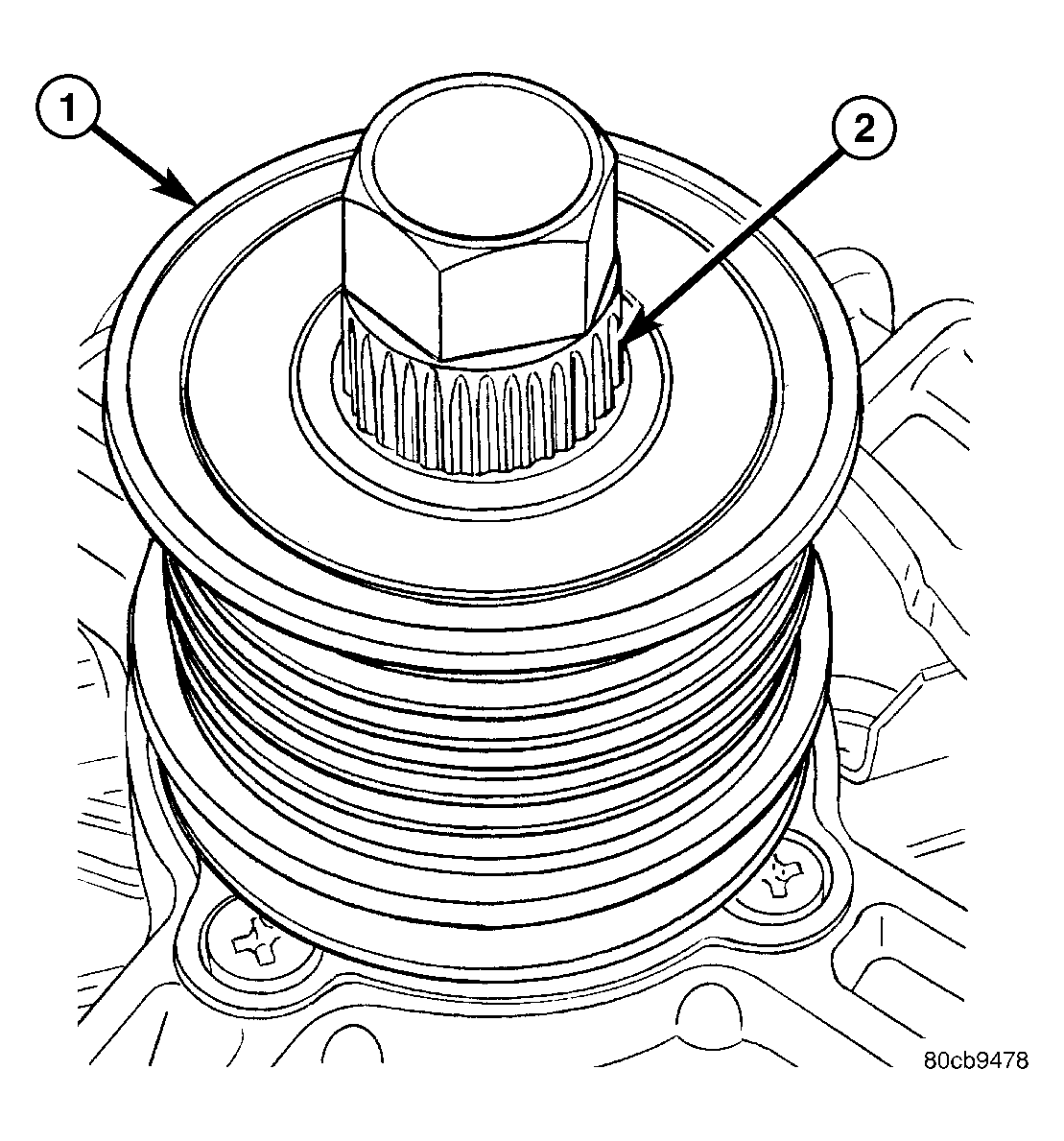

| 1 - INA DECOUPLER |
| 2 - TOOL #8823 (VM.1048) |
- Disconnect negative battery cable.
- Remove generator and accessory drive belt. Refer to Generator REMOVAL .
- Position Special Tool #8823 (VM.1048) (2) into decoupler (1).
Courtesy of CHRYSLER LLC

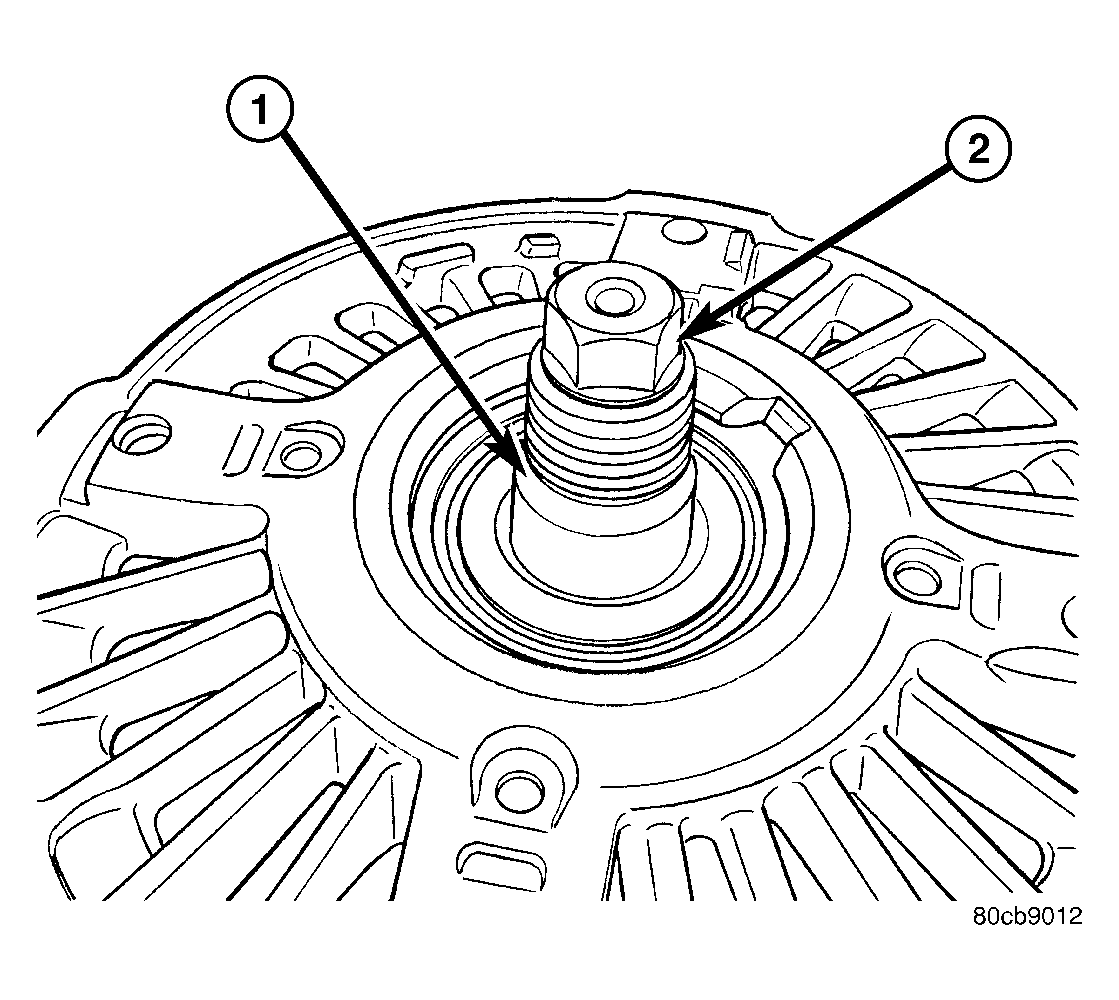

| 1 - GENERATOR SHAFT |
| 2 - HEX |
- Determine if end of generator shaft is hex shaped (2) or.
Courtesy of CHRYSLER LLC

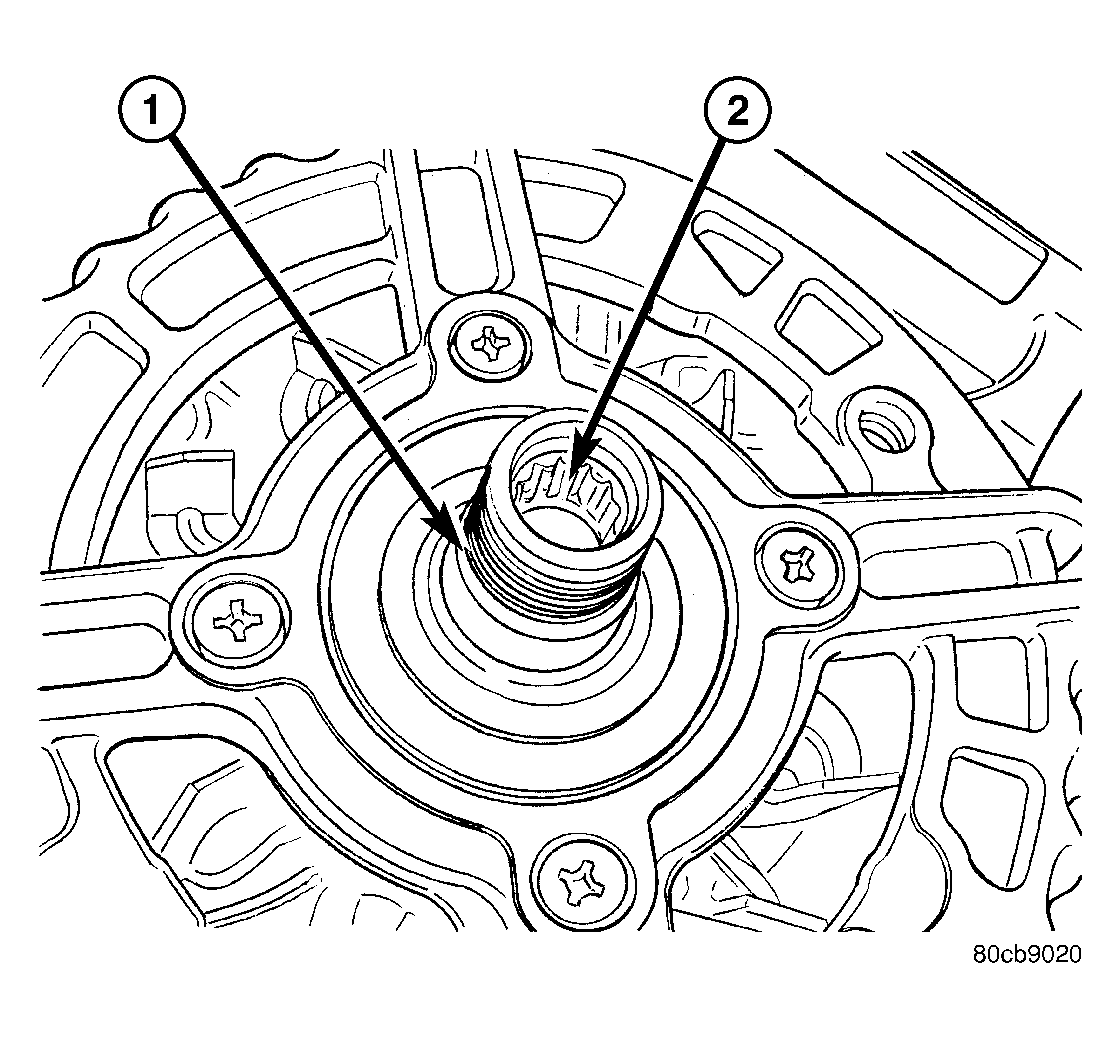

| 1 - GENERATOR SHAFT |
| 2 - SPLINES |
- or is splined (2).
Courtesy of CHRYSLER LLC

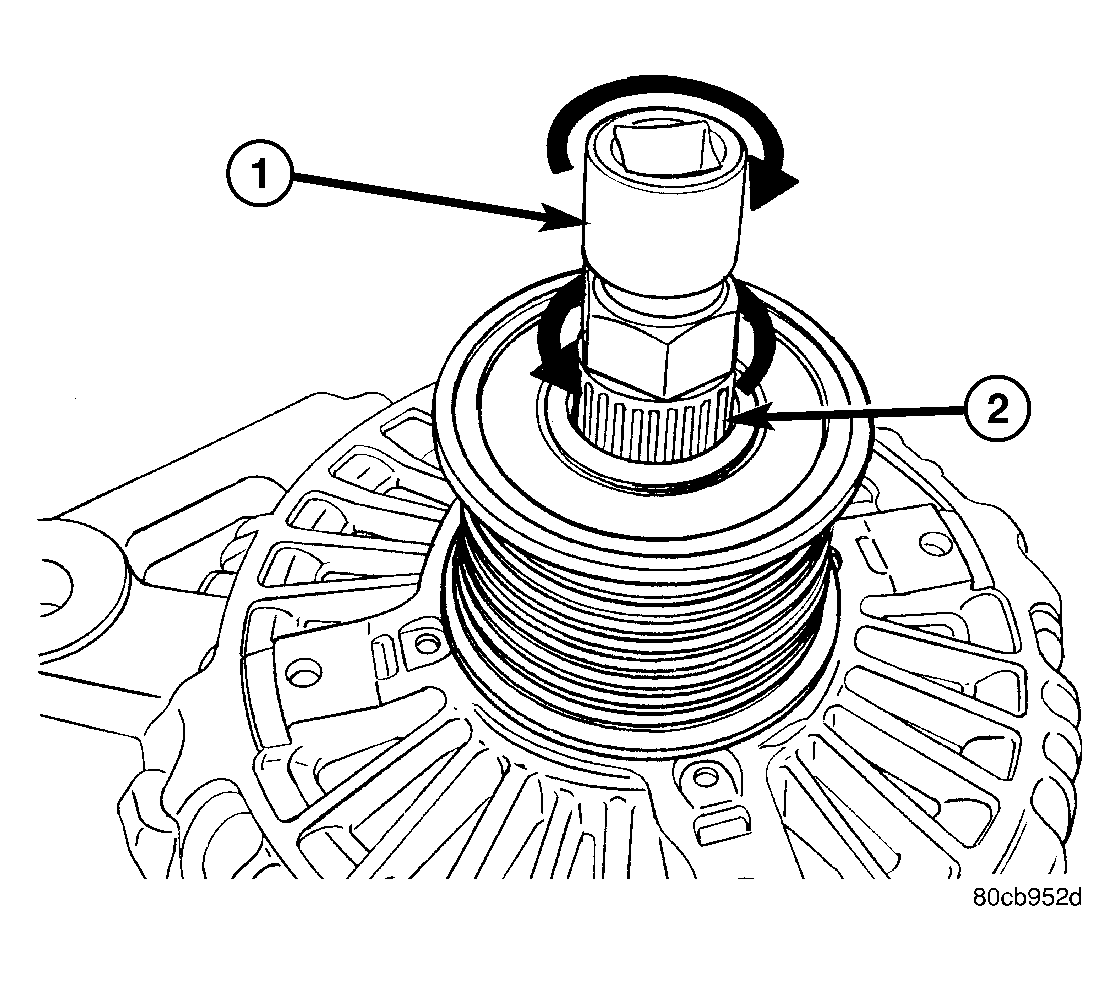

| 1 - DEEP 10 MM SOCKET |
| 2 - TOOL #8823 (VM.1048) |
- If hex is used, insert a 10mm deep socket (1) into tool #8823 (VM.1048) (2).
Courtesy of CHRYSLER LLC

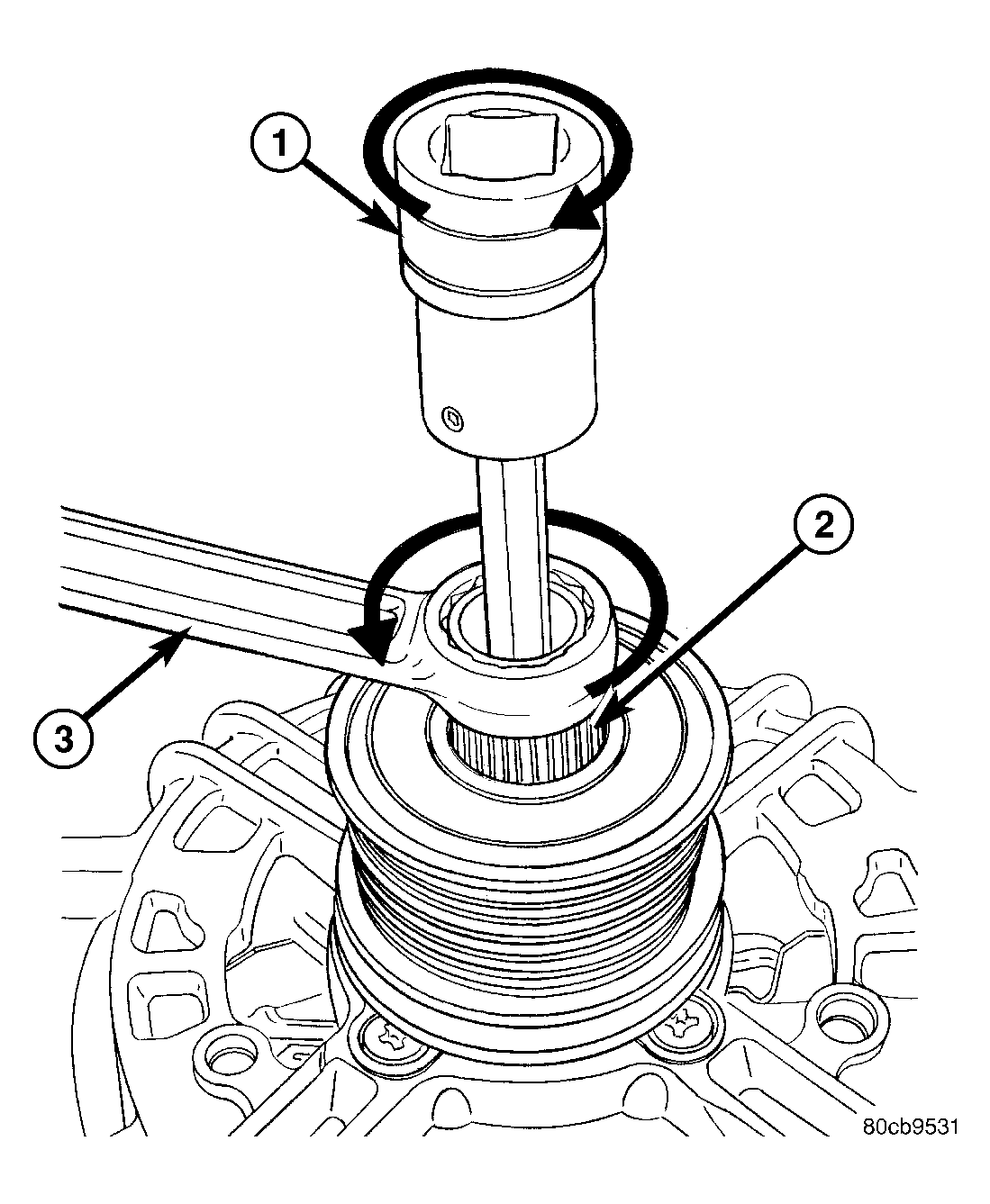

| 1 - DRIVER |
| 2 - TOOL #8823 (VM.1048) |
| 3 - 17 MM WRENCH |
- If splined, insert a 5/16" 6-point hex driver, or a 10mm 12-point triple square driver (1) into tool #8823 (VM.1048) (2).
- The generator shaft uses conventional right-hand threads to attach decoupler. To break decoupler loose from generator threads, rotate tools as shown
- After breaking loose with tools, unthread decoupler by hand from generator.
