Left Front Window Motor Connector End View

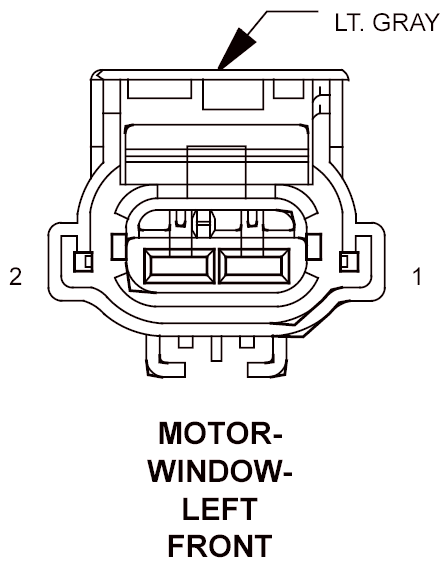

MOTOR-WINDOW-LEFT FRONT - LT. GRAY 2-WAY

GJK780190Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q21 14WT LEFT FRONT WINDOW DRIVER (DOWN)
2 Q11 14LB LEFT FRONT WINDOW DRIVER (UP)
