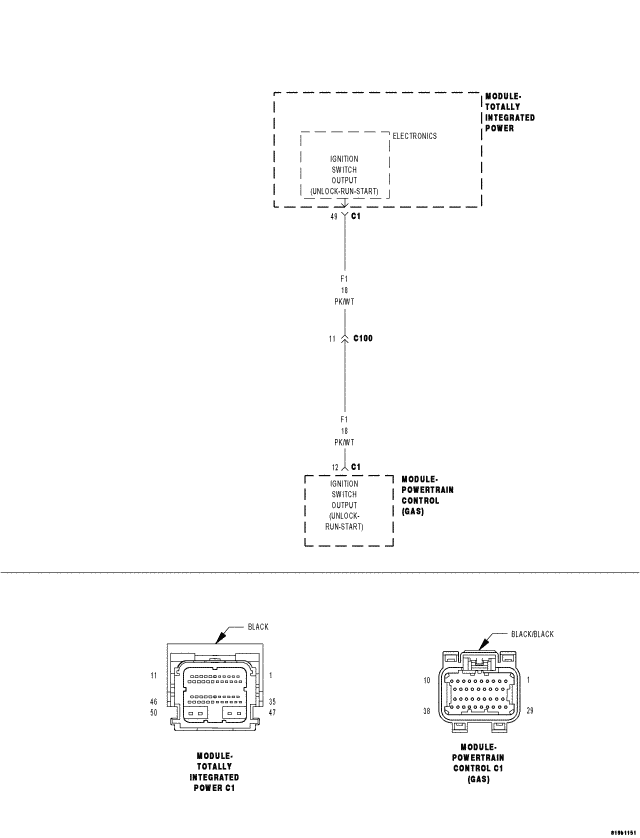

Home >> Jeep >> 2007 >> Wrangler X, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control - Electrical Diagnostics >> Ignition Control- Electrical Diagnostics >> DTC Troubleshooting >> B219A-Ignition Unlock Run/Start Control Circuit OVERCURRENT >> Circuit Schematic
