Sensor - Accelerator Pedal Position: Description

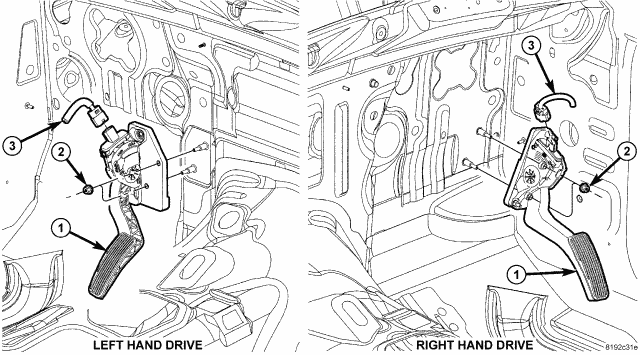

Fig 1: Accelerator Pedal/APPS
GC0062746Courtesy of CHRYSLER LLC

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket. Refer to PEDAL - ACCELERATOR  Removal and Installation procedures.
