Litens Decoupler

Fig 1: 8433 Tool & Litens Decoupler
GC0026369Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove generator and accessory drive belt. Refer to Generator REMOVAL .
  3. Position Special Tool #8433 into decoupler. Align to hex end of generator shaft.

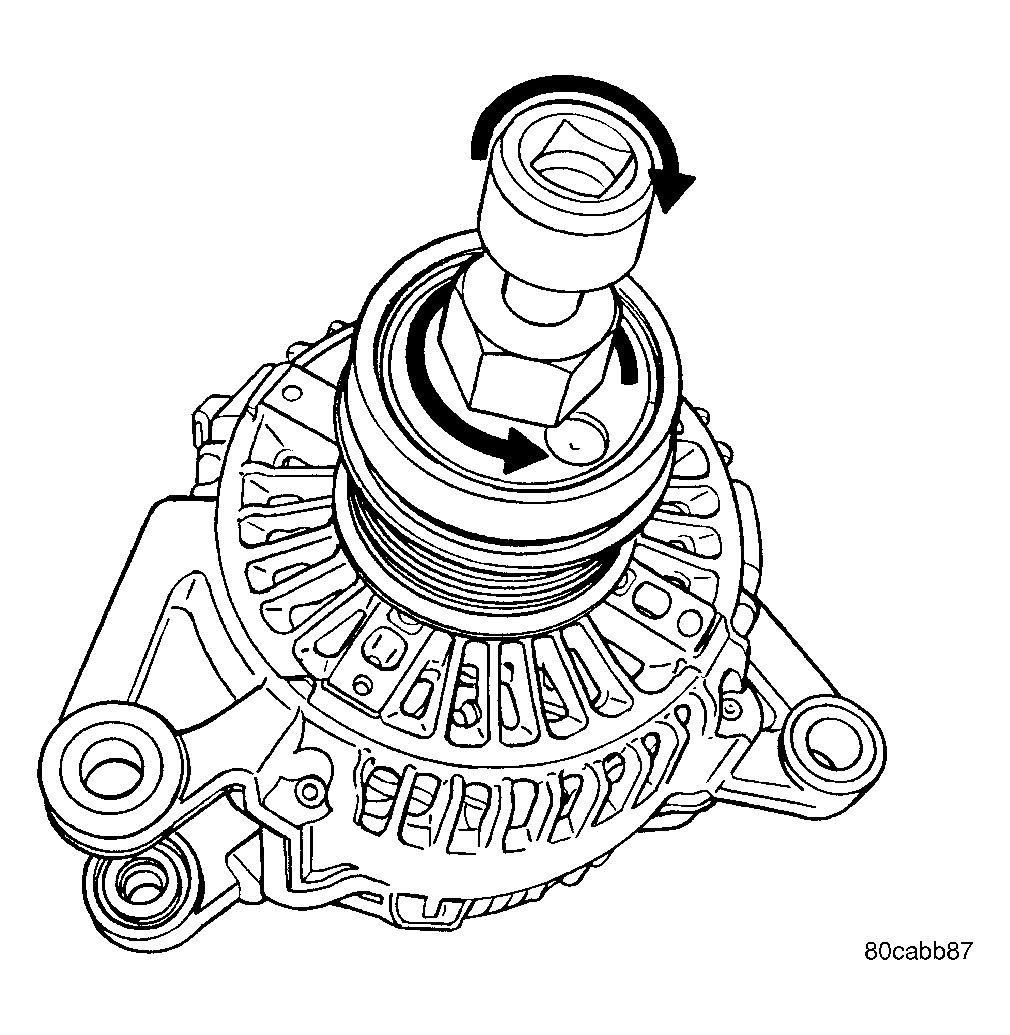

    Fig 2: Decoupler Removal (Litens)
    GC0026371Courtesy of CHRYSLER LLC
  4. The generator shaft uses conventional right-hand threads to attach decoupler. To break decoupler loose from generator threads, rotate end of tool clockwise.
  5. After breaking loose with tool, unthread decoupler by hand from generator.
