Wrangler X, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

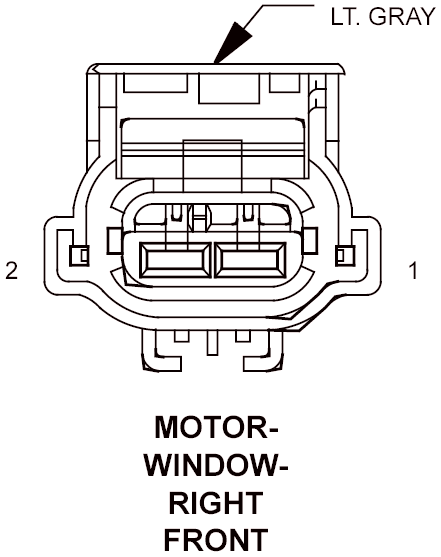

Right Front Window Motor Connector End View
Right Front Window Motor Connector End View
MOTOR-WINDOW-RIGHT FRONT - LT. GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q22 14VT/WT
RIGHT FRONT WINDOW DRIVER (DOWN)
2
Q12 14BR/LB
RIGHT FRONT WINDOW DRIVER (UP)
Courtesy of CHRYSLER CORP.
