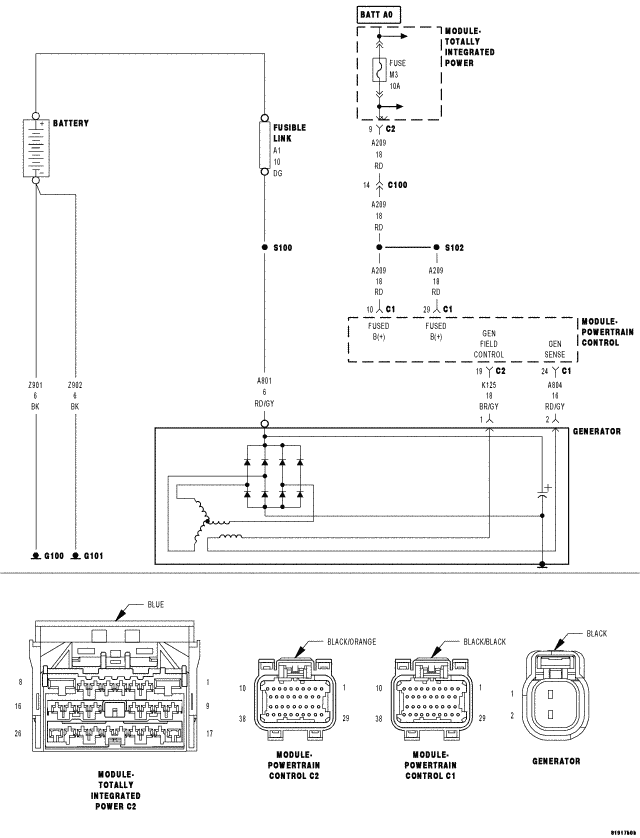

Home >> Jeep >> 2007 >> Wrangler Unlimited Rubicon, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0572 To P063A >> P0622-Generator Field Control Circuit >> Circuit Schematic
