Lower Suspension Arm

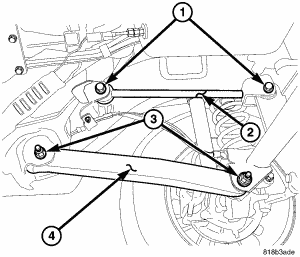

Fig 1: Upper And Lower Control Arm
GC0063447Courtesy of CHRYSLER LLC
  1. Position the lower suspension arm (4) in the axle bracket and frame rail bracket.
    NOTE: Position the paint dot located on the control arm toward the axle and facing outboard. If paint dot is not visible, the bend should point inboard, and the short end should attach to the axle side.
    NOTE: Frame and axle bolts should be installed outboard to inboard.
  2. Install the frame bolt and nut (3) finger tighten.
  3. Install bolt and new nut (3) finger tighten in the axle.
  4. Lower the vehicle.
  5. Tighten axle bracket nut to 169 N.m (125 ft. lbs.).
  6. Tighten frame bracket nut to 169 N.m (125 ft. lbs.).
  7. Align vehicle to specifications. See STANDARD PROCEDURE .
